Enclosure Material: Aluminum Die-Cast
External Dimensions: 175 x 80 x 57 mm
External Length: 175 mm
External Width: 80 mm
External Height: 57 mm
IP Protection Class: IP66
Color: Uncoated
Cover Color: Uncoated
With Flange: No
Shielded: No

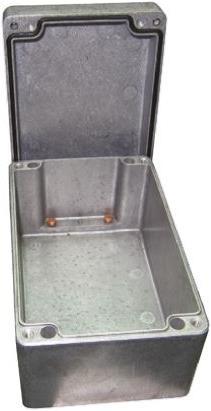

DIN 1725, IEC 60529 NEMA 4X and 6P UL 508A, UL 50, UL 50E CE MIL-STD-810G (mechanical vibration and shock tests) ASTM B117 IEC 62262 IK 60068-2-75. Aluminum die-cast enclosure, IP66, untreated. A waterproof series of enclosures made from aluminum die-cast (ALSi12). The enclosures meet the IP66 protection class and have been specifically designed for harsh and demanding applications. The enclosure includes a cover and a base, non-loosable stainless steel cover screws, a neoprene O-ring, a continuous seal, and four copper-plated grounding screws.

Features and Benefits: Protection against penetrating media according to IP66 through the use of a continuous seal with neoprene O-rings. Temperature stability of the cover seal from -40 to +100 °C. DIN rail mounting point. Cover and base plate connected with non-loosable stainless steel cover screws. Wall thickness 3 mm.

Frequently Asked Questions: What does IP protection class mean? The IP protection class is used to determine the effectiveness of the sealing of electrical enclosures against the ingress of foreign bodies (tools, dirt, etc.) and moisture. What is included in the delivery? Enclosure + Cover. 4 Cover Screws.
