Rated primary voltage: 230V AC
Rated secondary voltage: 12V AC
Nominal power: 50VA
Number of outputs: 2
Mounting type: Chassis
Length: 79mm
Width: 65mm
Depth: 62mm
Dimensions: 79 x 62 x 65mm
Mounting hole diameter: 4.7 x 9.5mm
Weight: 1kg
Operating frequency min.: 50Hz
Operating frequency max.: 60Hz

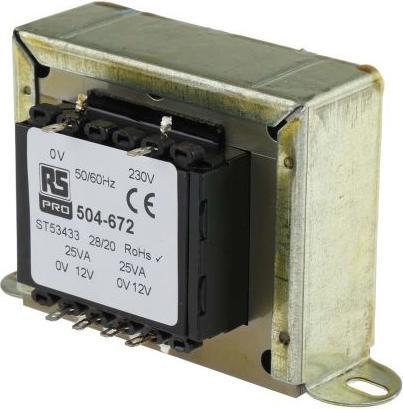

Chassis mounting, clamp version, 230 Vac, 6 VA to 50 VA. Mains transformers for chassis mounting with primary windings for 230 Vac and 50/60 Hz. The two independent secondary windings can be connected in series or parallel as required, allowing for various combinations of output voltage and output current. Features include a double-chamber coil core, fully sheathed windings, complete paint impregnation, clamp mounting with two mounting holes, and solder tag connections. Optional connection covers are available. The product undergoes 100% electrical testing and breakdown testing, following the test method according to BS3535 and EN60742.
