Primary rated voltage: 230V AC
Secondary rated voltage: 30V AC
Rated power: 100VA
Number of outputs: 2
Mounting type: Chassis
Length: 89mm
Width: 68mm
Depth: 75mm
Dimensions: 89 x 68 x 75mm
Mounting hole diameter: 4.7 x 7.9mm
Weight: 1.6kg
Operating frequency min: 50Hz
Operating frequency max: 60Hz

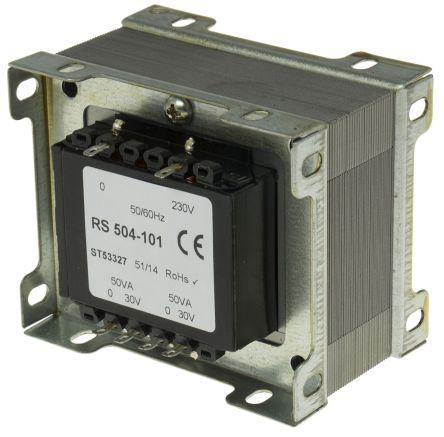

Frame for chassis mounting, 75 VA to 200 VA. The two independent secondary windings can be connected in series or parallel as required, allowing many combinations of output voltage and output current. Optional terminal covers for 75 VA and 100 VA.
