Capacity max.: 20000µF
Battery life: 100 h (zinc-carbon), 200 h (alkali)
Battery type: 9 V
Table/Hand: Handheld
Display type: LCD
Power supply: Battery
Dimensions: 87 x 39 x 185 mm
Weight: 290 g
Height: 185 mm
Length: 87 mm
Operating temperature max.: +50°C
Operating temperature min.: 0°C
Width: 39 mm

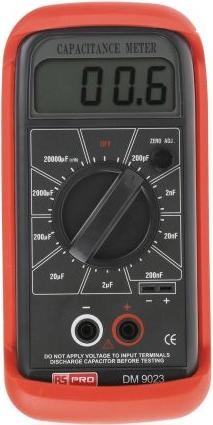

Instructions, set of test leads, rubber protective bag, 9 V PP3 alkaline manganese battery. The RS Pro DM-9023 hand capacitance meter features an 18 mm high LCD display (up to 2000). Zeroing of the cable capacitance is available via the zero point function on the front panel.

Properties and advantages:

• Nine ranges selectable by rotary switch for 200 μF to 20000 μF
• Accuracy 200 pF - 2000 μF ± 1 % measuring range ± 1 digit
• 20 kμF ± 2 % measuring range ± 2 digits

Areas of application: Laboratory applications, field use.
