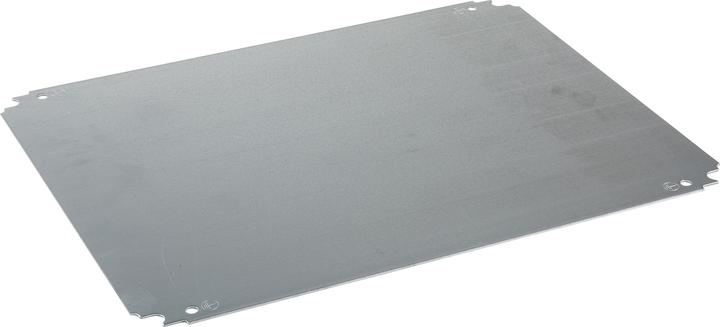

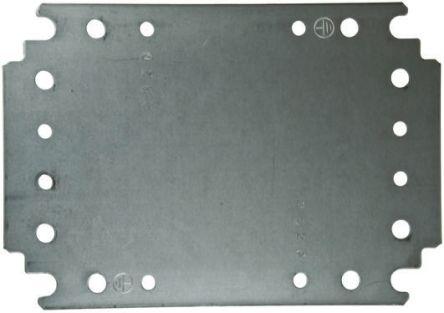

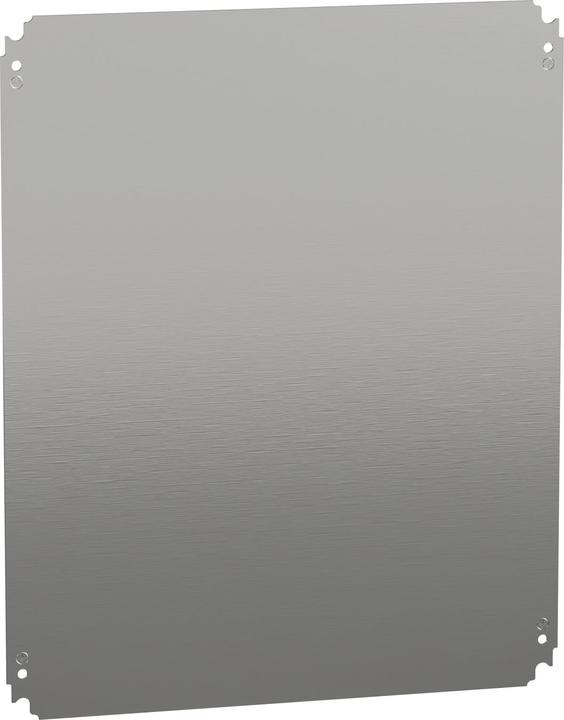

Type: Mounting Plate
Length: 450 mm
Width: 550 mm
Height: 2 mm

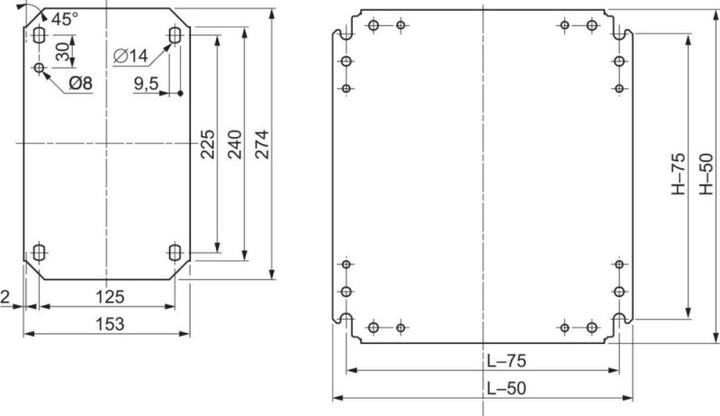

Dimensions: 450 x 550 x 2 mm
Material: Steel
For use with: Spacial CRN Enclosures

Wall brackets are sold separately. Not all enclosures are equipped with a mounting (chassis) plate. Please refer to the manufacturer's specifications. The IP66 Spacial CRN enclosures from Schneider Electric feature a steel monobloc design with a punched steel door. The sides are made of simply folded parts, and the back is welded with a double profile to create a protected, sealed area. The Spacial CRN enclosure series is painted inside and out with textured polyester epoxy resin in light gray (RAL 7035).

Features and Benefits:

• Protection class IP66, meaning the enclosures are dust-tight and provide protection against strong water jets and heavy seas.
• External mechanical impact resistance of IK10 (20 Joules) – this means the wall box can withstand a 5 kg object dropped from a height of 40 cm.
• Door can be easily reversed, secured with metal hinges that allow the door to open 120°.
• Drill holes for 4-wall mounting sealed with plastic plugs to meet the protection class requirements.
• Welded grounding connection bolts on the door and enclosure.

Application Area: The Spacial CRN enclosure series is designed for power distribution, industrial automation, and industrial control.
