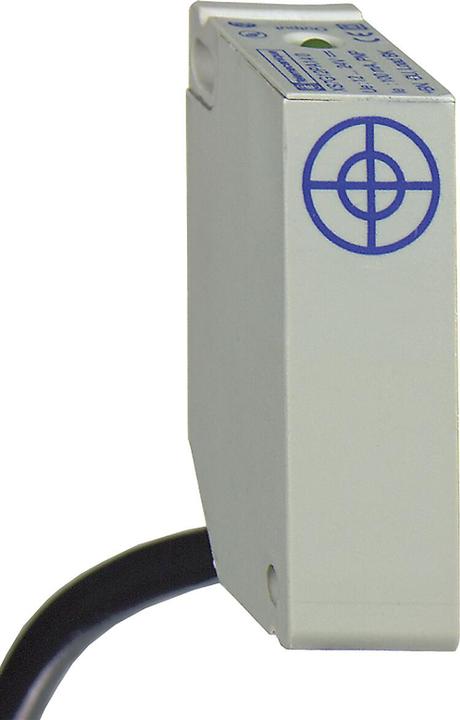

TE Sensors Proximity Switch XS8G12MA230

Manufacturer: TE Sensors
Designation: Proximity Switch
Type: XS8G12MA230
Width of the sensor: 12 mm
Height of the sensor: 40 mm
Length of the sensor: 26 mm
Mechanical installation condition for the sensor: non-flush
Switching distance: 4 mm
Suitable for safety functions: no
Type of switching function: Normally open
Type of switching output: 2-wire
Type of electrical connection: Radial cable
Type of actuation: Metallic target
Interface type: None
Interface type for safety-related communication: None
Housing design: Rectangular
Housing coating: Other
Cascadable: no
SIL according to IEC 61508: None
Performance Level according to EN ISO 13849-1: None
Max. output current at the safe output: 200 mA
Supply voltage: 24..240 V
Rated control supply voltage Us at AC 50 Hz: 24..240 V
Rated control supply voltage Us at AC 60 Hz: 24..240 V
Rated control supply voltage Us at DC: 24..210 V
Type of voltage: AC/DC
Switching frequency: 250 Hz
With monitoring function for downstream devices: no
Material of the housing: Plastic
Pressure resistant: no
Explosion protection category for gas: None
Explosion protection category for dust: None
Interference immunity against magnetic fields: Interference-resistant against static and alternating magnetic fields

TE Sensors Proximity Switch XS8G12MA230: Additional details
XS8 Inductive Proximity Switch dimensions 12x40x26 mm, plastic housing, switching distance Sn 4 mm, power supply 24-240 V AC/DC, 2 m connection cable.
