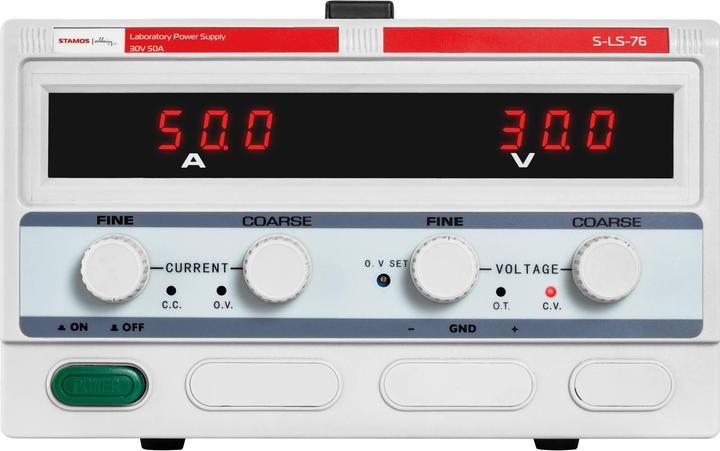

Powerful laboratory power supply unit up to 1,500 W. The S-LS-76 laboratory power supply unit specializes in supplying external devices with direct current, with individually adjustable current and voltage. Thanks to the large LED display, you can easily read and check the set values for the output voltage and current at any time.

The user-friendly laboratory power supply unit can be controlled very easily and conveniently using the rotary knobs. The rotary knobs allow both coarse and fine adjustment of the values, guaranteeing an exact setting option for the desired current from 0 to 30 V DC and 0 to 50 A.

The laboratory power supply provides equipment with a high safety standard: the device is equipped with overvoltage protection (OVP), overload protection (OPP), and special overheating protection (OTP), which automatically activates an integrated fan as soon as the maximum temperature is exceeded. These precautions guarantee safe operation of the power supply unit, even during intensive and prolonged use. Non-slip rubber feet also ensure that the device stands securely.

Technical details:

• Output voltage: 0 to 30 V
• Output current: 0 to 50 A
• Output power: 1,500 W
• Residual ripple: ≤ 1 % of the total spectrum
• Mains regulation: CV ≤ 0.2 %, CC ≤ 0.5 %
• Load regulation: ≤ 0.3 %

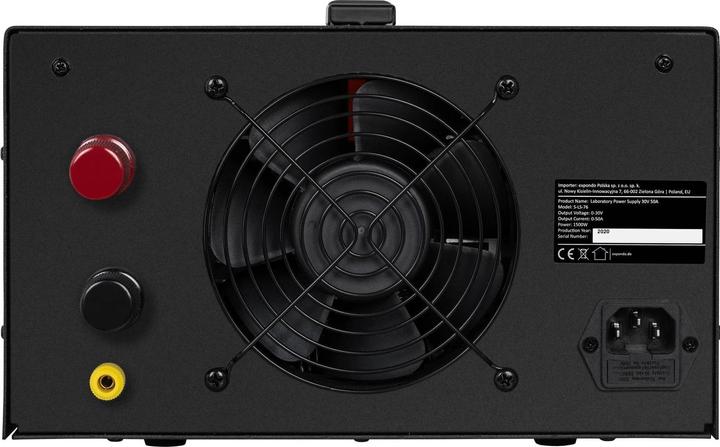

• Connections: Output sockets, mains connection socket, earth output terminal
• Display: LED
• Protection: OVP, OTP, OPP
• Fuse: 15 A
• Cooling: Fan, temperature-controlled

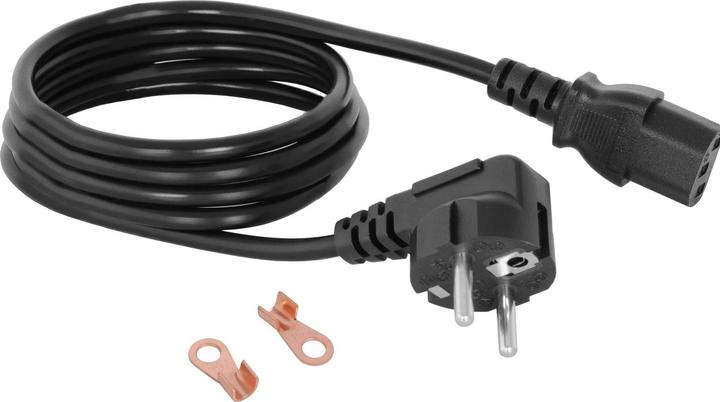

• Length of mains cable: 1.1 m

Scope of delivery:
Laboratory power supply S-LS-76, operating instructions.
