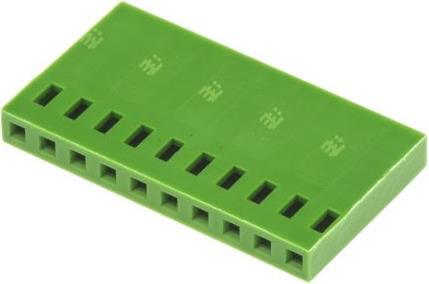

TE Connectivity 10way 1row unshrouded crimp socket shell

Ratings
Currently out of stock
Free shipping starting at 30,–

Product details

Number of contacts: 10
Number of rows: 1
Grid: 2.54mm
Gender: Female
Series: AMPMODU MOD IV
Housing orientation: Straight
Length: 25.4mm
Width: 2.94mm
Depth: 14.2mm
Case material: Nylon

TE Connectivity's AMPMODU IV crimp socket contact housing is 2.54mm. The cable assembly features a single row or double row contact configuration, suitable for AMPMODU MOD II PCB assembly, 0.25 inch. These AMPMODU IV crimp socket contact housings include alignment to ensure accurate connections, and variants with a connection retention lockout feature are also available. The housings of these AMPMODU IV crimp female connector housings are made of green thermoplastic. Contacts must be ordered separately.

Key specifications

Cable + connector type
Plug connectors
Item number
9939362

General information

Manufacturer
TE Connectivity
Category
Cables + Plugs
Manufacturer no.
1-925366-0
Release date
22.10.2018

Colour

Colour
Green

Material

Material
Polyamide

Cable + Connector Features

Cable + connector type
Plug connectors
Max. temperature
105 °C
Min. temperature
-65 °C
Manufacturer Type
AMPMODU MOD IV
Connectors Design
Socket, straight
Number of cores
10 x

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
0.29 cm
Width
2.54 cm
Height
1.42 cm
