Series: MTA-100
Grid: 2.54mm
Number of contacts: 6
Number of rows: 1
Housing orientation: Right angle
Jacketed/Non jacketed: Non jacketed
Mounting type: Thru-hole mounting
Connection type: Soldering
Contact material: Copper alloy
Operating voltage: 250 V ac

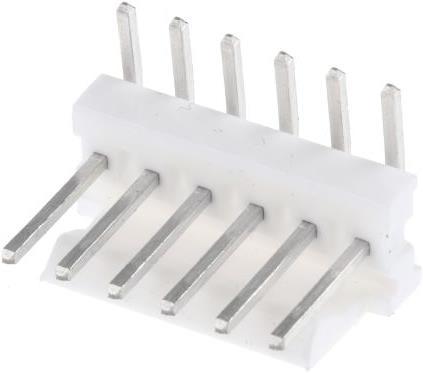

MTA-100 PCB pin headers, 2.54 mm, with force closure. MTA-100 PCB headers without jackets for use with MTA-100 IDC connectors to quickly connect wires in a variety of applications. These MTA-100 headers are stackable in series and have a positive locking mechanism for secure mating. Versions for vertical and right angle mounting of these MTA-100 pin headers are available.

Features and Benefits:

• Potential cost savings by quickly terminating wires when used with IDC connectors
• Stackable behind each other
• Positive locking for secure mating connections

Scope of Application:
These MTA-100 PCB headers, when mated with MTA IDC connectors, are suitable for quickly terminating wires in a variety of applications. In the automotive industry, these connectors can be used for enclosure systems, chassis systems, drive data, and safety systems. Applications in the computer and consumer electronics industries include desktop PCs, notebooks, servers, storage, and workstations.
