Number of contacts: 4
Number of rows: 1
Gender: Female
Pitch: 2.54 mm
Mounting type: Cable mounting
Housing orientation: Straight
Connection type: IDC
Rated current: 5 A
Contact plating: Tin
Series: MTA-100
Operating temperature min.: -55 °C
Operating temperature max.: +105 °C
Operating voltage: 250 V AC
Housing material: Nylon

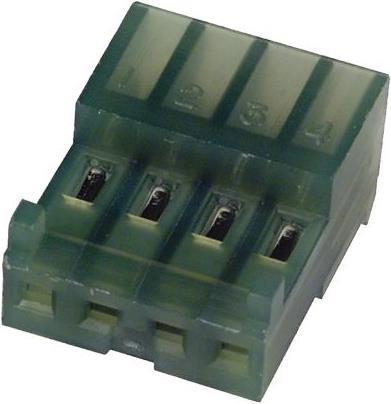

TE Connectivity MTA-100 IDC connectors with closed ends. MTA-100 IDC connectors enable quick wire connections in a variety of applications. The connectors come pre-loaded with two-part slotted IDC contacts, eliminating the need for stripping and allowing for one-step assembly. The contacts are also oil-coated for protection against fretting corrosion. These MTA-100 IDC connectors are stackable and feature a positive locking mechanism for secure connections. The housings are equipped with molded ribs to prevent reverse insertion, and versions with polarization tabs for additional alignment are also available.

Features and benefits:

• IDC contacts for one-step assembly
• Stackable
• Positive locking mechanism for secure mating connections
• Molded ribs to prevent reverse insertion
• Polarization tabs for additional alignment

Application area:
These MTA-100 IDC connectors are suitable for quick wire connections in a variety of applications. In the automotive industry, these connectors can be used for housing systems, chassis systems, drive data, and safety systems. Applications in the computer and consumer electronics industry include desktop PCs, notebooks, servers, storage, and workstations.
