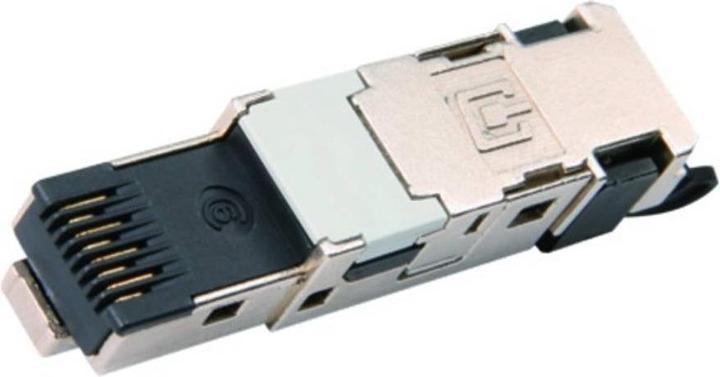

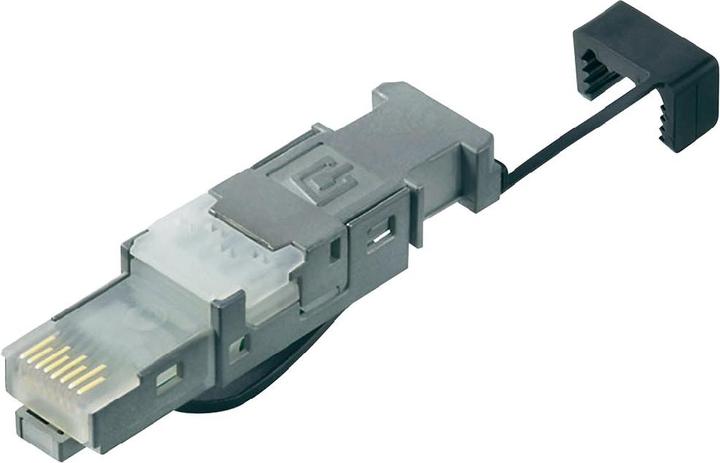

The field-terminable RJ45 connectors of the MPF8 series from Telegärtner can be directly mounted onto the installation cable to connect devices with RJ45 ports to the network. No outlet box or patch cable is required. The MFP8 series is the optimal solution for shielded Modular Plug Terminated Link (MPTL), End-to-End Links (E2E Links), and Direct Attach Cabling (DAC). With the field-terminable RJ45 connector MFP8 from Telegärtner, devices with RJ45 ports can be easily, quickly, and securely connected to the installation cable. When the device is mounted above the cable outlet or the cable is routed into the device's protective housing, the connection is invisible and inaccessible to unauthorized persons, which not only looks good but also provides the user with a crucial advantage in terms of tamper resistance.

Performance features: Connector according to IEC 60603-7 RJ45 8P8C, suitable for 10 Gigabit Ethernet 10GBASE-T according to IEEE 802.3, suitable for Power over Ethernet Plus according to IEEE 802.3at, color coding T568A, for shielded cabling, multi-port capable, can be terminated in 60 seconds without special tools, optimized for on-site installation, IDC cutting clamp contacts suitable for solid and stranded conductors, protection class IP20, suitable for cable outer diameters of 5.5 to 8.5 mm, cable strain relief with clips, SAP article designation CU-CN STXRJ45plg field 22-26 CEA T568A.

Notes: AWG22-26, with printed conductor pre-sorting according to T568A, field-terminable. Fire protection class: Not relevant. Burning drips: Not relevant. Smoke development: Not relevant. Acid development: Not relevant. Short designation: STX IP20 RJ45 connector Cat.6 Class EA (ISO/IEC).
