Resistance max. = 10kΩ
Number of turns = 19 (electrical), 22 (mechanical)
Mounting type = through hole mounting
Power = 1/2W
Series = 64W
Alignment = adjustment from top
Connection type = Pin
Length = 9.7mm
Depth = 5mm
Height = 11.1mm
Dimensions = 9.7 x 5 x 11.1mm
Shaft diameter = 2.2mm
Tolerance = ±10
Temperature coefficient = ±100ppm/°C

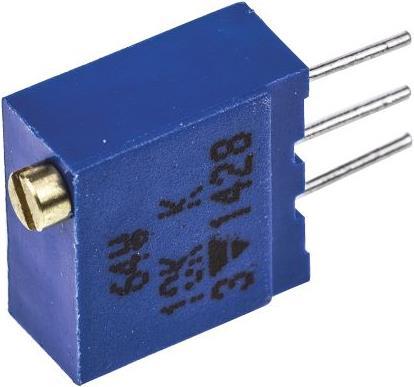

64 series, top adjustment. Narrow body design, higher packing density PCB wash-tight encapsulated Flame retardant plastic housing Double chevron axle seal Molded body with molded spacers IC contacts for PCB mounting Precious metal wiper for set point stability.
