Best Pilz products in the Relays category
On this page you'll find a ranking of the best Pilz products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Pilz PNOZ X6 24VAC 24VDC 3n/o 774729 Safety relay
The PNOZ X6 24VAC 24VDC 3n/o safety relay from Pilz is a reliable and powerful device designed for safety monitoring in industrial applications. It features a 1/2-channel configuration without cross-circuit detection and allows for the monitoring of emergency stops and safety doors. With an input voltage of 24 volts AC/DC and a compact design of 45 mm in width, it is ideal for use in various control systems. The device is equipped with integrated screw terminals, making installation and wiring easier. The PNOZ X6 ensures an automatic and monitored start, enhancing safety in the application. It is a standalone device known for its high reliability and user-friendliness.
- 1/2-channel configuration without cross-circuit detection
- Automatic and monitored start
- Integrated screw terminals for easy installation
- Monitoring of emergency stops and safety doors.
2. Pilz PNOZ X3 safety relay w/LED,24Vac/dc
Supply voltage = 24 Vac/dc
Number of channels = 2
Auxiliary switch = 1
Function = safety switch/interlock
Safety category ISO 13849-1 = 4
SIL = 3
PL = E
Safety contacts = 3
Range = PNOZ X
Reset type = Automatic, Monitored
Connection type = Screw mounting
Width = 45mm
CE, cULus approval, TÜV, KOSHA, CCC. PNOZ X3 series of safety relays from PILZ. The PNOZ X3 series of safety relays from PILZ introduces a safety-related interruption into your circuit, with the main applications typically being in potentially hazardous environments where you need a quick power cut. This is especially useful in high traffic automated environments such as factories and warehouses. Features and Benefits. LED status indicators to support switching of channel status between 1 or 2 signals and also for monitoring the supply voltage currently in the relay Solid state output signals: switching status channel 1/2 3 safety contacts, 1 auxiliary contact Multiple connection outputs and status indicators Safety relay opening and closing is automatically checked with each on/off cycle A monitored manual reset is available in this device Standard DIN rail mounting. Safety devices. The circuit is redundant and with built-in self-monitoring Reliable X3 functionality means your safety function remains effective even if components fail The transformer is short-circuit proof, and a safety module is used on a DC power supply. Applications. Emergency stop buttons Safety gate monitors Reset buttons Light barriers. Safety parameters. EN 60204-1 EN (IEC) 62061 EN ISO 13849-1 VDE 0113-1 EN 60947-5-1.

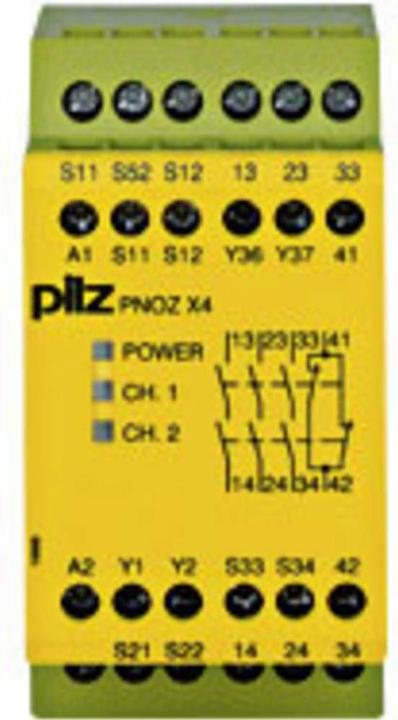

3. Pilz GmbH & Co. KG Emergency stop switchgear PNOZ X4 24VDC 3n/o 1n/c
Our safety relays PNOZ X have proven their reliability and robustness. They are used in a wide range of applications and various safety functions. You use one PNOZ X for each safety function. The technical basis consists of potential-free, electromechanical contacts in a 2-relay configuration. The sizes vary from 22.5 to 90 mm, and the number of contacts ranges from two to eight. Whatever your safety requirements may be – PNOZ X has already proven itself millions of times in the demanding industrial environment.
4. Pilz SIGMA SAFETY RELAY, 24VDC, 3NO 1NC 1SC
The PNOZ s4 product line from Pilz includes safety relays for monitoring emergency stop buttons, safety doors, and light curtains. These safety relays meet the requirements of EN 60947-5-1, EN 60204-1, and VDE 0113-1 and can be used as safety components according to the lift directives 95/16/EC and EN 81-1.
Forced-guided relay outputs: 3 safety contacts (N/O), 1 auxiliary contact (N/C) without delay
1 semiconductor output
Connector for connecting a contact expansion block PNOZsigma
Operating modes can be set via a rotary switch
LED indicator lights
Plug-in connection terminals: spring-loaded terminal or screw terminal
Supply voltage: 24V DC or 48V AC/DC up to 240V AC/DC
Applications: Industry, power management, automation and process control, safety.

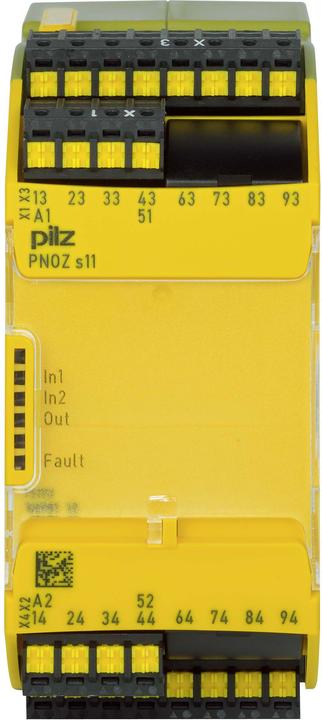

5. Pilz 751111 PNOZ s11 C 24VDC 8 n/o 1 n/c
The PNOZ s11 C 24VDC 8 n/o 1 n/c from Pilz is a reliable contact expansion module specifically designed for use in safety-oriented control systems. With a supply voltage of 24 V DC and a width of 45 mm, this product offers a compact solution for contact expansion. It features 8 normally open contacts (n/o) and 1 normally closed contact (n/c), allowing for flexible adaptation to various applications. The pluggable spring-loaded terminals ensure easy and secure wiring, while the robust relay contacts guarantee high reliability. The contact block is ideal for use in industrial environments where safety and efficiency are of utmost importance. The design of the PNOZ s11 C meets relevant standards and provides high performance while maintaining compact dimensions, making it an excellent choice for modern automation solutions.
- Input voltage of 240 V AC for versatile applications
- Maximum output current of 6 A for reliable performance
- Robust contact materials made of AgCuNi with additional gold plating
- Operating temperature range of -10 to 55 °C for various environmental conditions.

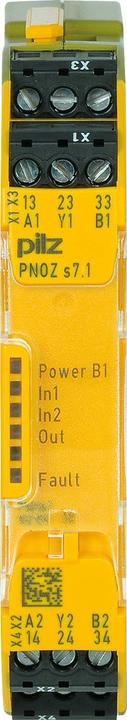

6. Pilz GmbH & Co. KG Contact expansion PNOZ s7.1 24VDC 3 n/o cascade
The GmbH & Co. KG contact expansion PNOZ s7.1 from Pilz is a reliable solution for expanding contacts in safety-oriented control systems. With an input voltage of 24 V DC and a compact width of 17.5 mm, this product is ideal for applications where space and efficiency are critical. The contact expansion offers three normally open contacts (n/o) and allows for easy integration into existing systems. Thanks to the pluggable screw terminals, secure and straightforward wiring is ensured. The additional power supply enables the connection of further contact blocks, increasing the flexibility and expandability of the system. The PNOZ s7.1 is suitable not only for industrial applications but is also compatible with smart home systems, making it a versatile choice for various use cases.
- Three normally open contacts (n/o) for flexible contact adjustments
- Pluggable screw terminals for easy installation
- Additional power connection for supplying further contact blocks
- Compatible with smart home systems for expanded application possibilities.
7. Pilz GmbH & Co. KG Safety relay PNOZ X2.8P c 24-240VAC/DC 3n/o
The PNOZ X2.8P c 24-240VAC/DC safety relay from Pilz is a highly advanced monitoring relay designed for the reliable supervision of safety applications. It offers a flexible 1/2-channel configuration with the capability for cross-short detection. With a wide input voltage range of 24 to 240 volts AC/DC, it is versatile and ideally suited for monitoring emergency stop circuits and safety doors. The device is available in a compact format of 22.5 mm in width and features pluggable spring-loaded terminals for easy installation and maintenance. The combination of automatic and manual start provides additional flexibility in application. This safety relay is a reliable solution for industrial applications that require the highest safety standards.
- 1/2-channel configuration with cross-short detection
- Automatic and manual start
- Pluggable spring-loaded terminals for easy installation
- Monitoring of emergency stop and safety doors.
8. Pilz Pnoz Xv2
The Pnoz Xv2 from Pilz is a highly advanced safety relay designed for use in industrial applications. It provides a reliable solution for monitoring safety functions such as emergency stops and safety doors. With a compact width of 45 mm, it is easy to integrate into existing systems. The device supports a 1/2-channel wiring with cross-circuit detection, ensuring enhanced safety. The integrated screw terminals facilitate installation and connection. The Pnoz Xv2 is equipped with two delayed contacts that allow for a delay time of up to 3 seconds in 12 stages, enabling flexible adaptation to various safety requirements. This device is an ideal choice for companies that want to maintain the highest safety standards in their production processes.
- 1/2-channel wiring with cross-circuit detection
- Two delayed contacts with adjustable delay time
- Integrated screw terminals for easy installation
- Monitoring of emergency stops and safety doors.

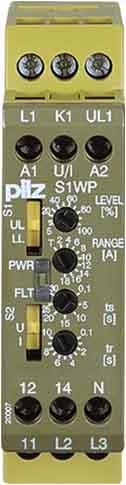

9. Pilz Active power measuring transformer S1WP 9A #890030
The S1WP 9A active power measurement transformer from Pilz is a highly advanced device for monitoring active power in single-phase and three-phase networks, specifically designed for use with frequency-controlled motors. With a wide range of 9 measurement ranges covering frequencies from 0 to 1000 Hz, this device allows for precise measurement of electrical power. It supports a measurement voltage of up to 550 V AC/DC and offers both a relay output and an analog output, which can either be 0-10 VDC or 4-20 mA. With a compact width of 22.5 mm, the S1WP 9A is ideal for applications where space is limited. The operating voltage is 24 V DC, making it a flexible solution for various industrial applications.
- Suitable for frequency-controlled motors
- 9 measurement ranges from 0-1000 Hz
- Measurement voltage up to 550 V AC/DC
- Output options: 0-10 VDC or 4-20 mA
- Compact width of 22.5 mm.

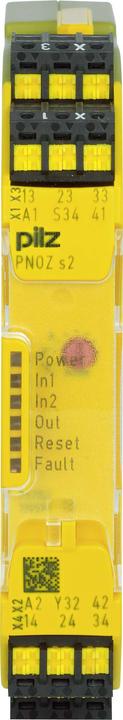

10. Pilz GmbH & Co. KG Safety gate monitor PNOZ s2 c 24VDC 3 n/o 1 n/c
The PNOZ s2 c 24VDC 3 n/o 1 n/c from Pilz is a highly advanced safety relay specifically designed for monitoring safety doors and emergency stop functions. This relay provides a reliable and secure solution for industrial applications where the safety of machines and equipment is of utmost importance. With an input voltage of 24 V DC and a compact design of only 17.5 mm in width, it is ideal for use in tight spaces. The device features three safety contacts and an additional normally open contact, allowing for flexible integration into existing systems. The pluggable spring-loaded terminals simplify installation and maintenance, while the robust construction ensures a long service life. The PNOZ s2 c is a proven product that meets high safety standards in automation technology.
- Dual-channel expansion module for increased safety
- Inputs for single-channel wiring
- Pluggable spring-loaded terminals for easy installation
- Monitoring of emergency stops and safety doors.
