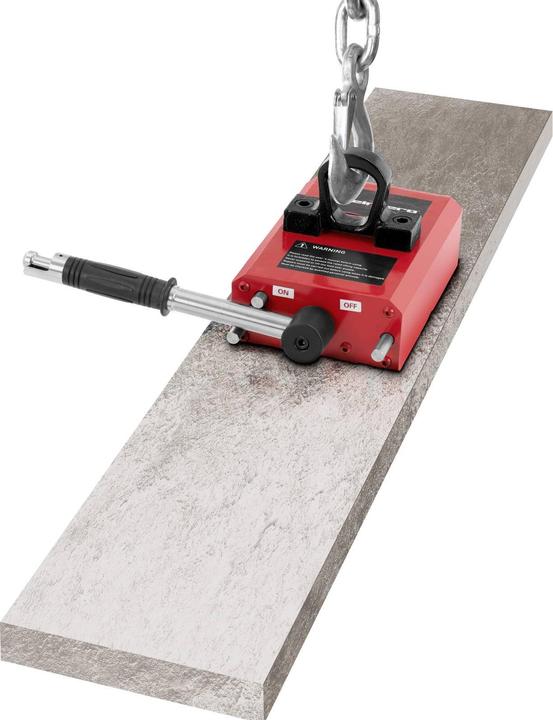

The powerful lifting magnet with a capacity of up to 600 kg for industry and crafts features a high-energy neodymium magnet. This allows for the effortless lifting of ferromagnetic loads such as steel beams or automotive engines weighing up to 600 kg. Unlike forklifts or robotic arms, the magnetic lifting method protects the surface of the workpiece. For thin iron workpieces starting from 5 mm, the lifting magnet already develops its full magnetic attraction.

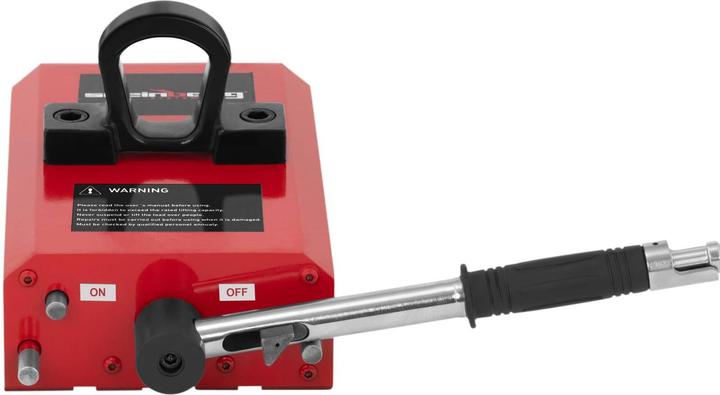

The lifting magnet impresses particularly with its quick and easy handling. The compact and lightweight device simply needs to be positioned centrally on the workpiece. It is then activated by flipping a lever. The lifting force is generated without the need for electricity.

Workpieces of various shapes can be transported with the lifting magnet. In addition to common flat materials, round workpieces can also be lifted effortlessly, such as metal pipes, steel columns, or solid ferromagnetic cylinders. Uneven surfaces or dirt can reduce the lifting power. The cordless operation provides flexibility and minimizes sources of error. The device is equipped with a safety mechanism that prevents the lever from being accidentally released. The breakaway force of 1,800 kg additionally ensures maximum safety at the workplace.

Technical details:

• Load capacity: 600 kg
• Pulling force: 1,800 kg

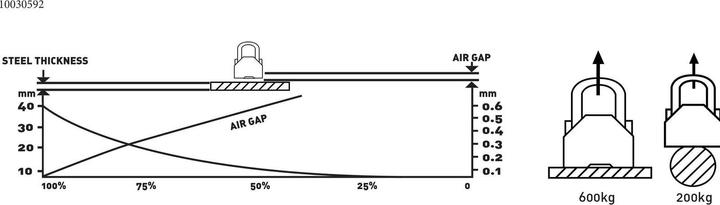

• Capacity on uneven surfaces: 200 kg
• Temperature range: 0 - 80 °C
• Release/attachment mechanism: Manual lever

Delivery includes:
Lifting magnet SBS-PML-600DUAL, operating manual.
