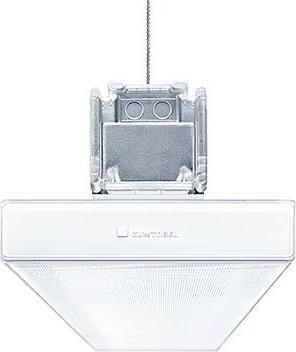

ECOOS2 Slim 5500-940 TEC L15 MPO EVG WH

Minimalist luminaire with TECTON adapter for quick and easy mounting on the TECTON trunking system. This LED luminaire features a microprismatic optic, with a wattage of 49.7 W and an electronic ballast with LED converter. The LED service life is 100,000 hours until the luminous flux drops to 90% of the initial value. The colour location tolerance (initial MacAdam) is 3. The luminous flux is 5,490 lm, with a luminous efficacy of 110 lm/W. The colour rendering index is Ra > 90, and the colour temperature is 4000 K.

Light control is achieved through patented Curved Wave Guide light injection and MPO-plus micropyramid structure optics, featuring multilayer construction for defined light emission with a UGR of less than 19 and L of less than 3000 cd/m² at 65° for screen applications. The luminaire is made of white extruded aluminium, consisting of an optic and TECTON C-profile, with the colour configurable to match the TECTON track. Design end caps (available in different colours) must be ordered separately. The luminaire is wired halogen-free and has passed a glow wire test at 650°C. Dimensions are 1512 x 152 x 48 mm, and the weight is 7.8 kg.
