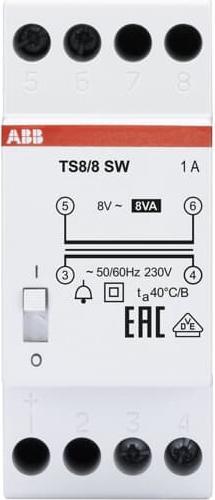

ABB Stotz S&J Bell Transformer TS 8/8SW

Manufacturer: ABB Stotz S&J
Designation: Bell transformer 230V 8V/1A
Type: TS 8/8SW
Primary voltage: 230 V
Secondary voltage 1: 8 V
Secondary current 1: 1 A
Max. output power: 8 W
Max. output current: 1 A
Max. power loss: 4 W
Type of transformer: Standard bell transformer
Surface mounting: no
Flush mounting: no
Suitable for rail mounting: yes
Length: 65 mm
Width: 35 mm
Height: 85 mm
Width in modular units: 2
Short circuit proof: yes
Temperature protection: yes
With on/off switch: yes

ABB Stotz S&J Bell Transformer TS 8/8SW: additional details
Conditionally short-circuit-proof bell transformers TS for supplying low voltage (SELV). Suitable for loads that require a temporary supply, particularly doorbells and carillons. In addition to perfect insulation and separation between the primary and secondary circuits, the TS transformers have a thermal protection device integrated in the secondary part, making them resistant to short-circuit currents (conditionally short-circuit-proof). Furthermore, the TS8/SW series is equipped with a switch for controlling loads at the secondary output.
