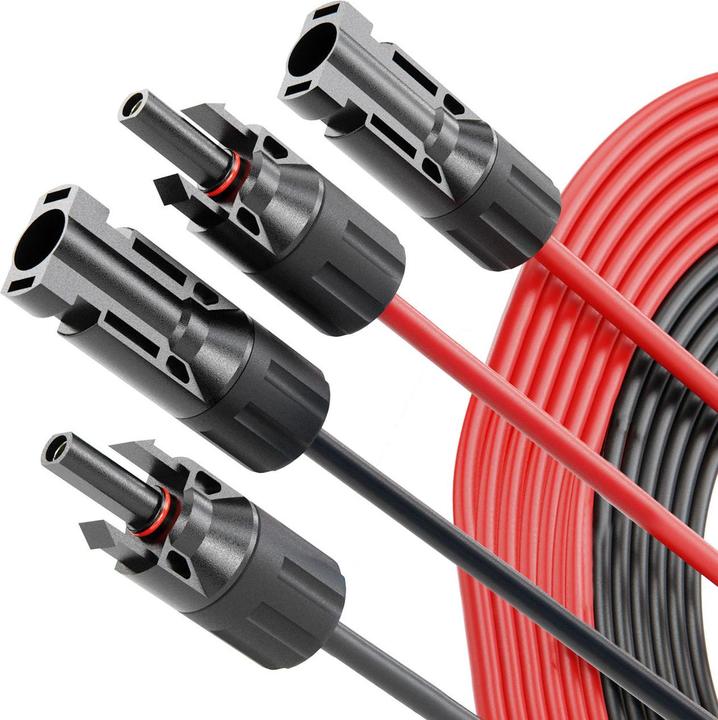

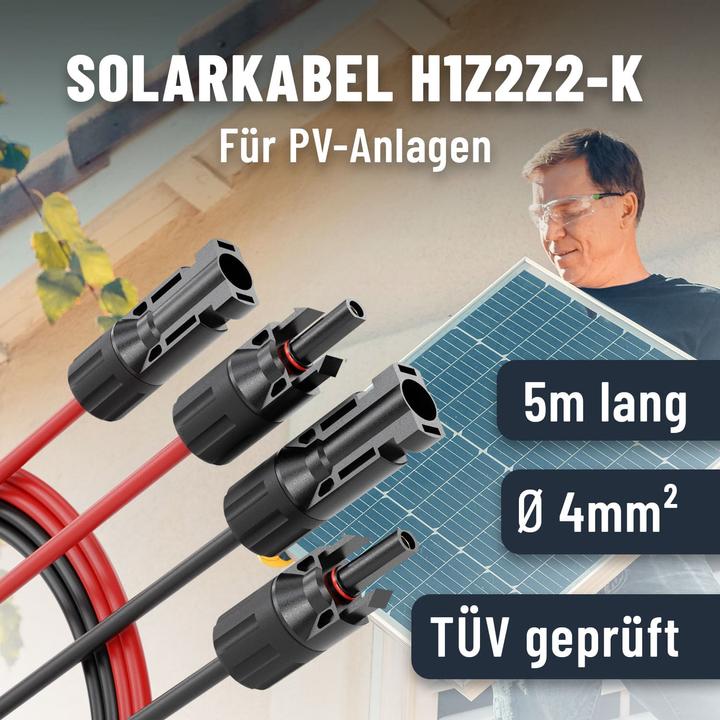

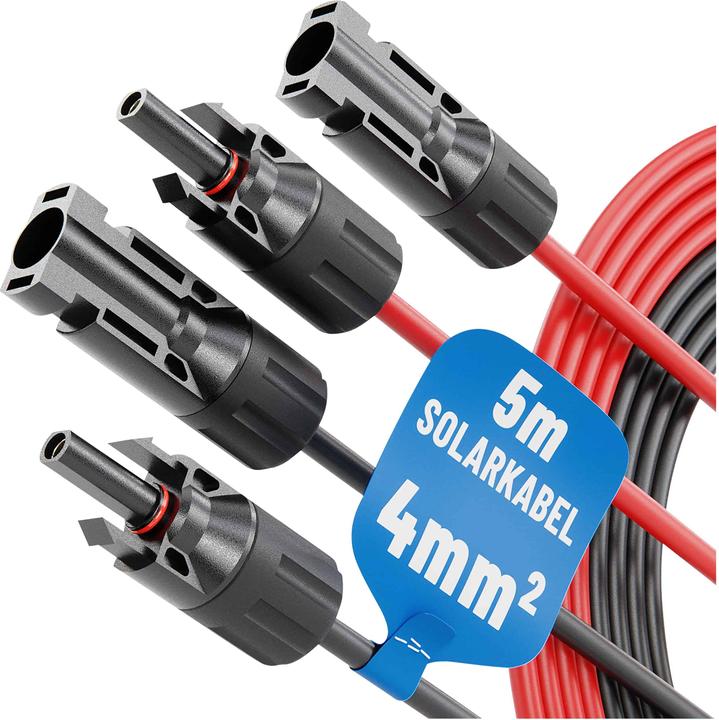

Absina 5m solar cable set MC4, IP67, black

Thanks to its excellent conductivity and corrosion resistance, the Absina professional extension cable for photovoltaics ensures efficient energy transmission. It is suitable for use in all photovoltaic systems, balcony power plants, or for cabling solar modules. The 4 mm² solar cable is UV-resistant and has a high temperature resistance of -40°C to +90°C, making it suitable for outdoor use. This solar cable can be used for freely movable applications or fixed installations in photovoltaic systems in accordance with EN 60364-7-712. It is applicable indoors, outdoors, in potentially explosive atmospheres, in industry, or on farms.

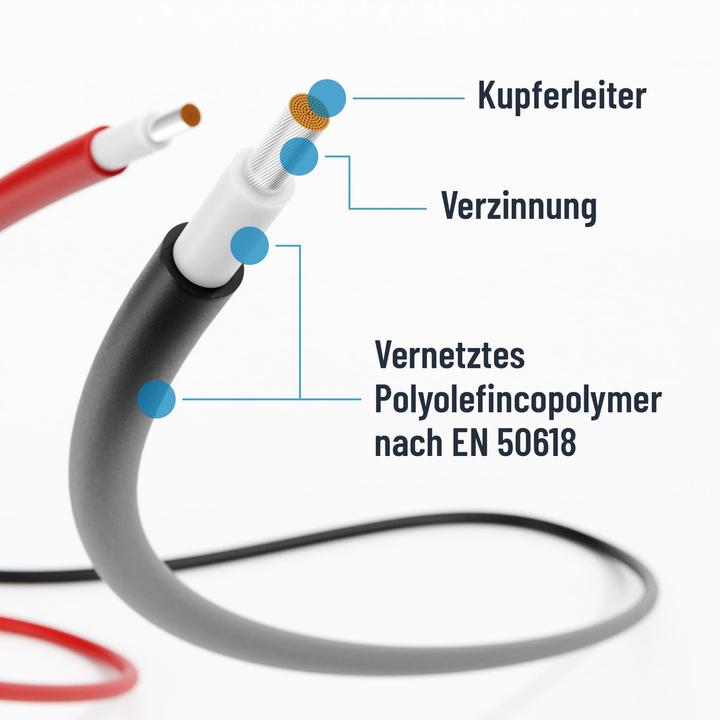

Core insulation and sheath material: cross-linked polyolefin copolymer
Conductor material: CU tinned
Conductor class: 5 finely stranded
Rated voltage DC: 1.5kV
Test voltage: 6.5kV
Halogen-free
Short-circuit proof
Compatible with solar and PV systems
Quick and easy laying and installation
Weather-resistant

Technical data
Colour: black
Max. Voltage: 1500 V
Cable length: 5000 cm
Cable cross-section: 4 mm

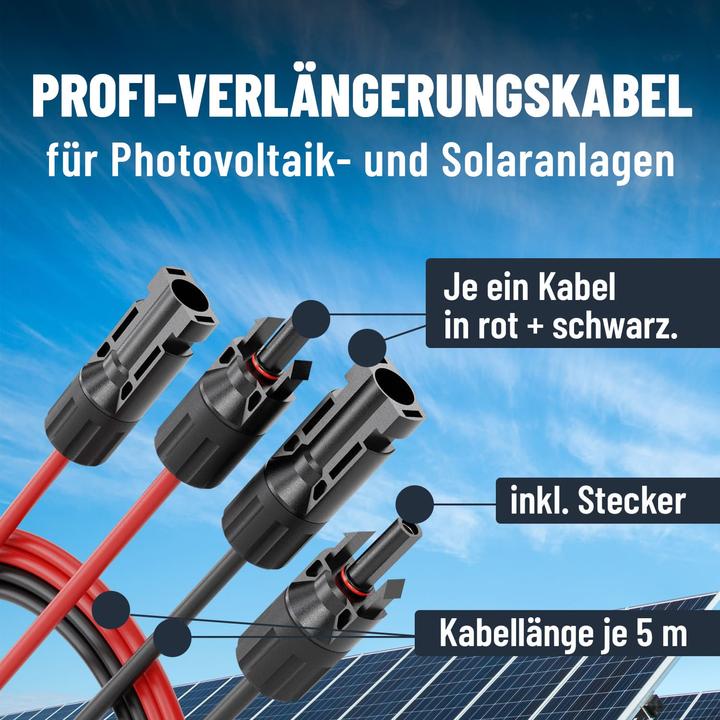

Scope of delivery: 2x 5 metre solar cable 4mm black/red with solar plug.
