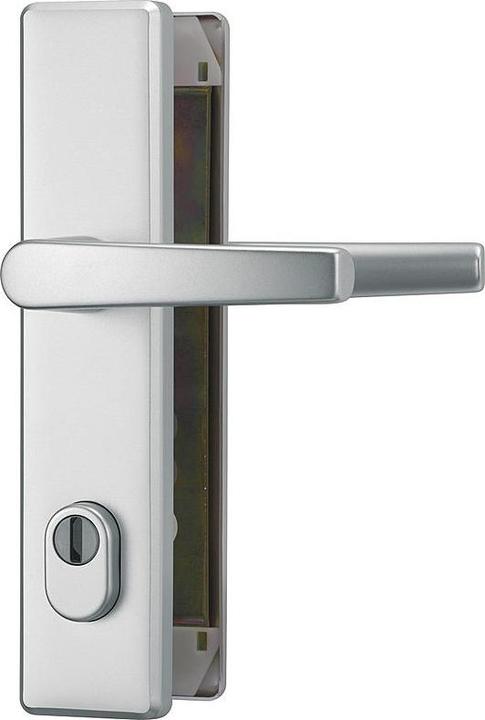

Abus HLZS814 F2 b.Dr. EK security fitting square, nickel silver with cylinder protection

• For front doors (HLZS) and flat entrance doors (KLZS)

• HLZS for front doors: Spacing: 92 mm, square spindle: 10 mm

• Suitable for flush and rebated doors, DIN right and DIN left

• Handle plate outside, lever handle inside

• VdS-approved, TÜV-tested, in accordance with DIN EN 1906 SK2 and DIN 18 257 ES1 ZA

• High overall stability thanks to layered construction; several steel plates (total thickness: 13.5 mm) ensure a high level of protection

• High impact resistance: Extra-long steel cams plus tempered special screws (3 x M6)

• High tear-off protection due to steel insert in the inner plate

• Integrated pull protection and freely rotating special steel disc

• Reversible handle plate for DIN left and DIN right doors

• Alternative door handle: as interchangeable set (outside knob/inside lever handle) or with door handle on both sides (inside lever handle/outside lever handle)

• Available for house entrance doors (HLZS) and flat entrance doors (KLZS)

Cylinders protruding from the door are protected by the Abus HLZS814 security fitting with cylinder protection. The stable installation of the Abus HLZS814 security fitting with cylinder protection is simple and can be carried out quickly on almost any door. Before installation, check the setting of the door on which the Abus HLZS814 security fitting with cylinder protection is to be installed.
