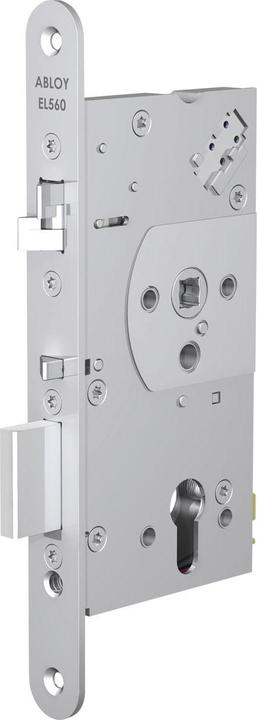

With integrated door handle control. The locks of the EL 560 model series feature a split handle rose and thus require an inside handle (or panic bar) and an outside handle. The lock is activated by a signal from a card reader, code lock, timer, button, etc. The bolt is retracted by the engaged outside handle, releasing the locking of the deadbolt. When closing the door, the control latch interacts with the deadbolt to prevent the preloaded bolt from extending and locks the deadbolt, serving as an additional locking mechanism. The adjustment for the panic side and the selection between holding and working current can be made at the lock if necessary. The operating nominal voltage is 12 - 24 V DC.

Working current version: As long as the power is on, the lock can also be opened via the outside handle. However, when power is turned off (or in case of a power failure), the outside handle is inactive.

Holding current version: As long as no power is supplied (or in case of a power failure), the lock can also be opened via the outside handle. However, when power is restored, the outside handle is inactive.

Features:

• Self-locking with deadbolt and latch
• Mechanical control between deadbolt and control latch
• Integrated panic function via the inside handle
• Override function for unlocking with a key from the outside
• Approval according to DIN EN 179 and DIN EN 1125
• Suitable for installation in fire protection doors

Technical Data:

• Operating nominal voltage 12 V to 24 V DC stabilized (-10% / +15%), at 12 V DC 480 mA inrush current for 1 sec., in operation 12 V DC 240 mA, at 24 V DC 270 mA inrush current for 1 sec., in operation 24 V DC 110 mA
• Load capacity microswitch 24 V DC: 200 mA
• Operating temperature -20 °C to +60 °C
• Bolt projection 20 mm

Approvals:

• DIN EN 179 EC conformity certificate: 0432-CPR-00008-01
• DIN EN 1125 EC conformity certificate: 0432-CPR-00008-02

With panic function featuring a split square.
