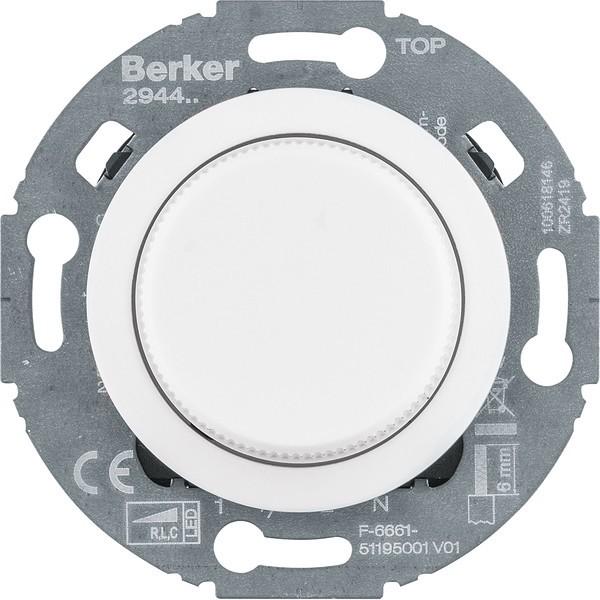

Berker Uni rotary dimmer Z.-st. (LED) 294410

Manufacturer: Berker
Designation: Uni rotary dimmer Z.-st. (LED) 1930/glass, pw.
Type: 294410
Composition: Basic element with central cover plate
Operating mode: Rotary/push button
App control via Bluetooth: No
Dimming phase control: Yes
Dimming phase cut-off: Yes
Series dimmer: No
Load type: Universal and LED retrofit
Extension unit input: Yes
Light value memory: Yes
Usable with push-button: No
Usable with motion detector: No
Usable with presence detector: No
Usable with timer: No
Can be used with radio button: No
Can be used with IR button: No
Type of mounting: Flush-mounted
Type of fastening: Claw fastening
Material: Other
Material quality: Other
Surface protection: Untreated
Surface finish: Glossy
Colour: White
RAL number (similar): 9010
Transparent: No
Suitable for protection class (IP): IP20
Rated voltage: 230 V
Frequency: 50-60 Hz
Type of connection: Screw terminal
Wire cross-section: 0.5-4 mm²
Device width: 71 mm
Device height: 71 mm
Device depth: 45 mm
Min. depth of device box: 27 mm

Further details: Universal rotary dimmer with centre plate (R, L, C, LED), series 1930/glass, pw. gl. Universal rotary dimmer with central piece with extension input for push-button (NO) with single-surface operation, voltage check possible without removal, phase control or LED phase control depending on load type (self-learning). With brightness memory, lamp-protecting soft start, incremental encoder, short-circuit-proof and overload-proof (electronic fuse), screw terminals. Note: Do not connect inductive and capacitive loads together.
