• Ideal for large, single-piece fronts
• Cabinet height 350–800 mm
• Cabinet width up to 1800 mm
• Clear depth of at least 264 mm
• Integrated BLUMOTION adjustment for soft and quiet closing
• Low actuation forces
• Continuously adjustable stop
• Fixed position of the energy storage and front attachment
• Symmetrical levers
• Tool-free assembly
• Two types of energy storage mounting
• 3-dimensional adjustment of the front

Order Information
For overlapping areas, we recommend the stronger energy storage. In the edge areas of the individual energy storage units, we recommend a stop test. The performance factor can be increased by 50% with the use of a third energy storage unit. For wide cabinets, we recommend a third energy storage unit due to the potential bending of the front when open.

Consists of:

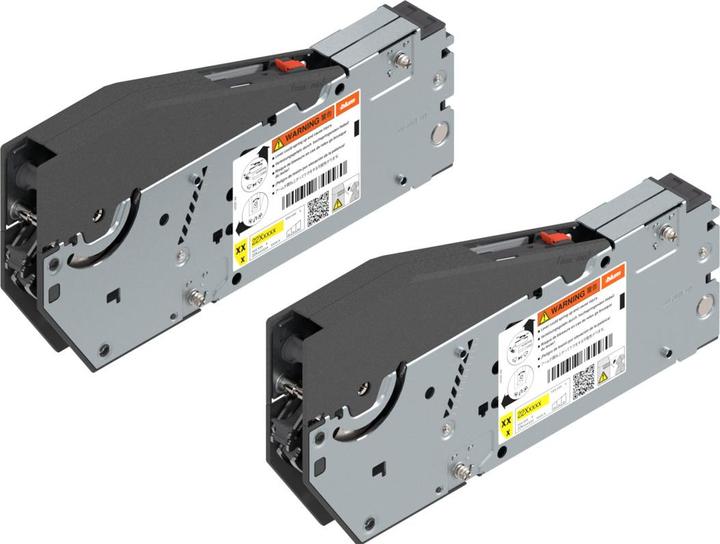

2x symmetrical energy storage units with pre-assembled system screws

Consists of:
2x symmetrical energy storage units including position finding
8x chipboard screws Ø 4 x 35 mm.
