Busch-Jaeger Central disc

Price in EUR including VAT
Delivered between Wed, 13.8. and Fri, 22.8.
Supplied by
Free shipping starting at 30,–

Product details

Busch-Jaeger Centre plate eleven/ws 1748-82 Manufacturer :Busch-Jaeger Designation :Centre plate eleven/ws f. small sockets Type :1748-82Small socket outlets Type :1748-82 Composition :Operating element Use :For data connection housing Support ring :yes With dust protection :no With hinged cover :no Outlet direction :straight Labelling field :without labelling field With imprint :no Mounting type :flush-mounted Material :plastic Material quality :thermoplastic Halogen-free :yes Antibacterial treatment :no Surface protection :untreated Surface finish :glossy Colour :ivory/white RAL number (similar) :1013 Transparent :no Fastening type :Claw/screw fastening Number of modules (for modular design) :1 With sockets/couplings :no Suitable for Number of sockets/couplings :2 With strain relief :no Sockets shielded :no Housing shielded :no Luster terminal :no With lighting :no Suitable for degree of protection (IP) :IP20 Device width :71 mm Device height :71 mm Device depth :32 mm Min. device box depth :40 mm Depth of appliance box :40 mm Busch-Jaeger central disc elf/ws 1748-82: Further details For covering according to DIN 41524, 41529, 45322, 45327, 45328 and 45329 of small socket outlets and round plug connectors with screw cap M 16x0.75 (can be installed in base insert). Knock-out openings 6, 8, 18 mm. EAN: 4011395065754.

Key specifications

Number of cans
1 x
mounting style
Flush-mounted
Exact colour description
Ivory
Item number
36748472

General information

Manufacturer
Busch-Jaeger
Category
Sockets
Manufacturer no.
2CKA001710A3655
Release date
28.6.2023

Colour

Colour
Beige
Exact colour description
Ivory

Material

Material group
Plastic
Material
Thermoplastic resin

Socket Properties

Number of cans
1 x
Protection type (IP code)
IP20
mounting style
Flush-mounted
connector type
Screw fastening

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

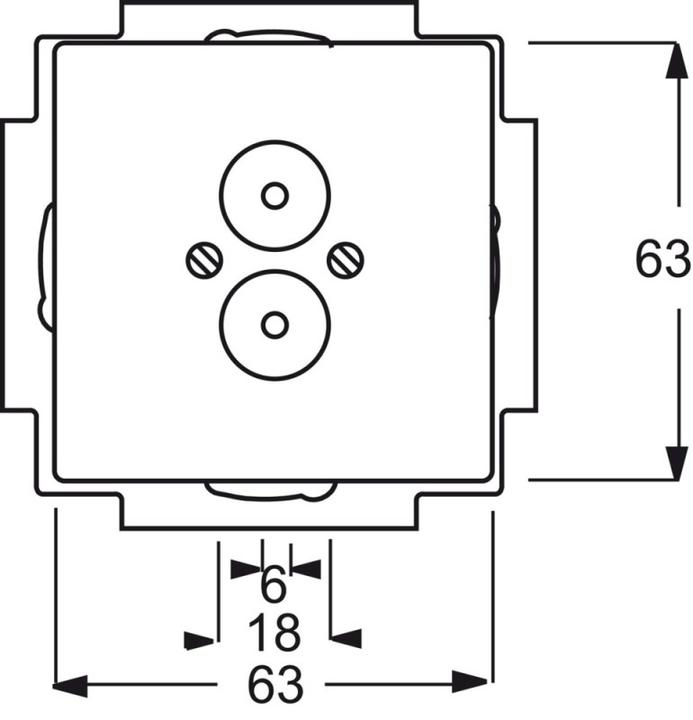

Product dimensions

Stack depth
3.20 cm
Length
3.20 cm
Width
7.10 cm
Height
7.10 cm
Weight
53 g
