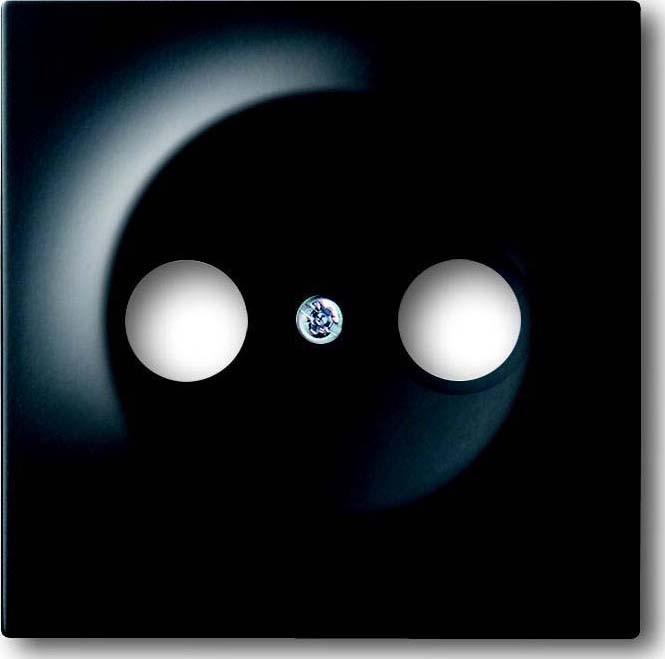

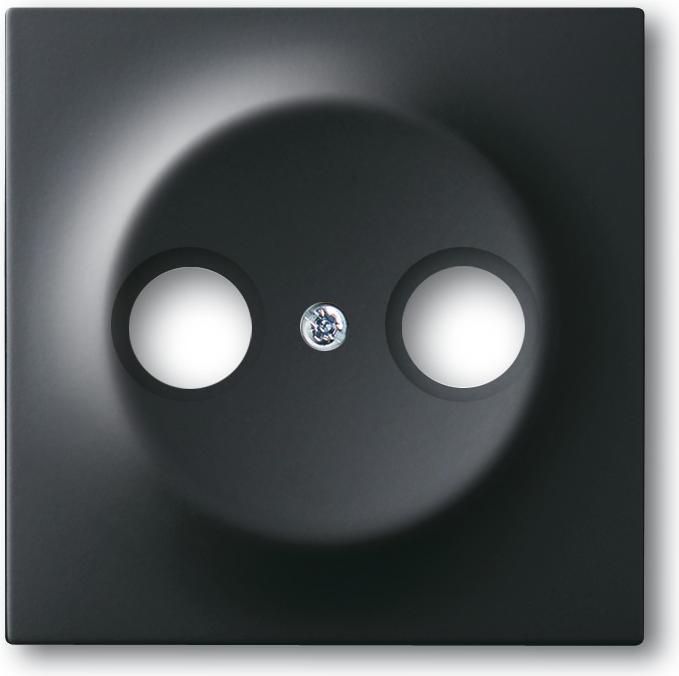

Busch-Jaeger Central Plate Black with 1743-775

Manufacturer: Busch-Jaeger
Description: Black central plate with antenna socket, 2-hole
Type: 1743-775
Composition: Central plate
Usage: Satellite
Mounting ring: No
With dust protection: No
With flip cover: No
Outlet direction: Straight
Labeling field: Without labeling field
With print: No
Mounting type: Flush-mounted
Material: Plastic
Material quality: Thermoplastic
Halogen-free: Yes
Antibacterial treatment: No
Surface protection: Painted
Surface finish: Glossy
Color: Black
RAL number (similar): 9005
Transparent: No
Mounting type: Screw mounting
Number of modules (in modular design): 1
With sockets/couplings: No
Suitable for number of sockets/couplings: 2
With strain relief: No
Shielded sockets: No
Shielded housing: No
Terminal block: No
With lighting: No
Suitable for protection class (IP): IP20

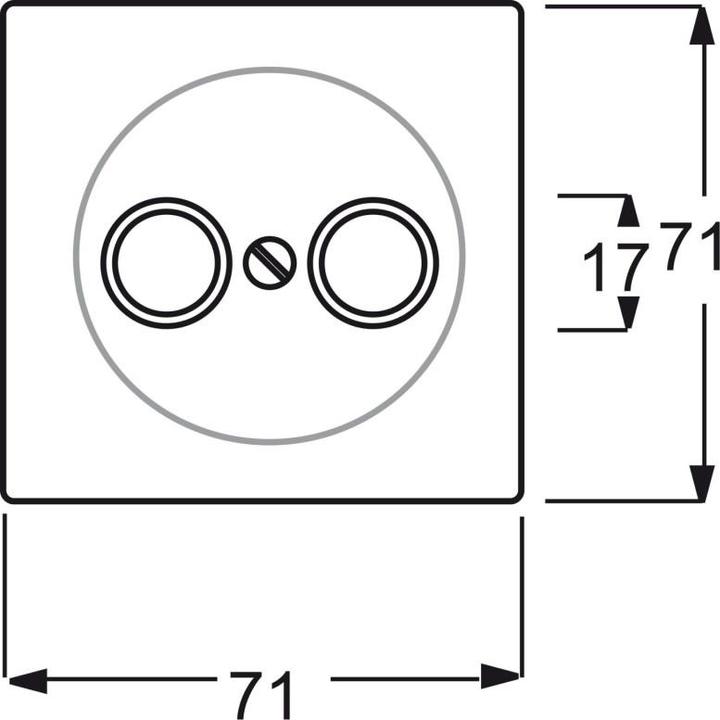

Device width: 71 mm
Device height: 71 mm
Device depth: 10 mm
Min. depth of device box: 32 mm

Busch-Jaeger Central Plate Black with 1743-775: additional details
With 2 connections. According to DIN 45330. With central fastening M3. See inserts for antenna sockets.
