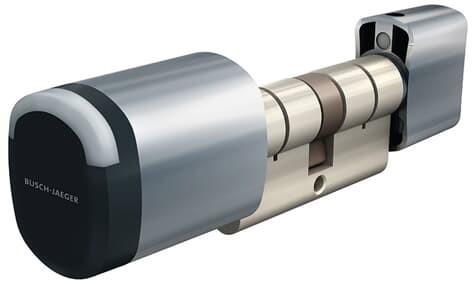

Busch-Jaeger Electric Cylinder D01EU303503TF1-03

Manufacturer: Busch-Jaeger
Designation: Electric Cylinder 30/35 T EU
Type: D01EU303503TF1-03
Standalone: no
Networkable: yes
PC Connection: no
Max. Number of Doors: 1
Interface Type: other
Reading Method: data carrier
Signal Output: light signal
Mounting Type: other
Operating Temperature: -35 to 55 °C
Protection Class (IP): IP66
Color: black
Version: Reader
Material: metal
Power over Ethernet (PoE): no
Width: 31.5 mm
Height: 38.5 mm
Depth: 147 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT Support Available: no
VdS Class: none

Additional Details:
Cylinder available for various door thicknesses.
Profile Type: Euro standard profile cylinder with interior knob
Battery Life: up to 130,000 openings.
Supported Transponder Types: Mifare DESFire transponder
Article Numbers: DO81WH-0x, DO81GY-0x, and DO81BK-0x.
For commissioning the cylinders, the Smart Access Point Pro/Lite, the AccessControl maintenance card, and the mounting tool are required.
Encrypted communication with Busch AccessControl identification media as well as AccessControl construction and maintenance cards.
Further details on system setup can be found in the system manual.
Integrated LED status indicator with acoustic feedback.
Color of the Cylinder Head: Satin Chromium Black
Radio Range (Free Field): 10 m
Extension of the radio range by using the RF/IP Gateway or the RF Repeater.
Dimensions of the Electric Knob: 22.3 mm x 47 mm x 39 mm
Dimensions of the Cylinder Base Body: 30 mm to 140 mm (depending on the ordered type).
Battery included.
Battery Type: 4x LR1
EAN: 4011395288627.
