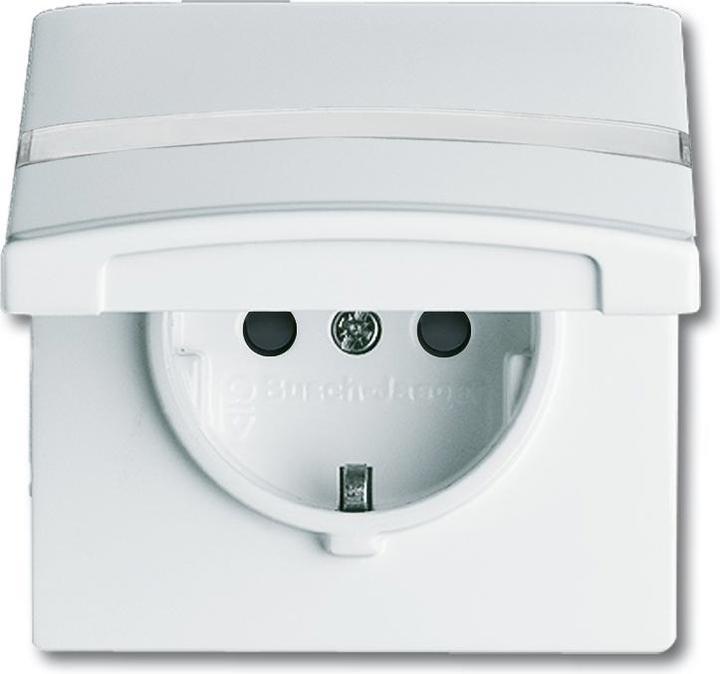

Busch-Jaeger Schuko socket outlet insert 20 EUGKBN-34-101

Manufacturer: Busch-Jaeger
Designation: Schuko socket outlet insert
IP Rating: IP44
Color: Alpine white
Type: 20 EUGKBN-34-101
Design: Schuko
Protective contact: Yes
Number of active contacts: 2
With signal lamp: No
With built-in USB power supply: No
Number of units: 1
Number of modules: 1
Number of phases: 1
Imprint/labeling: Without
Connection type: Plug-in terminal
With hinged cover: Yes
With increased contact protection: Yes
Text field/labeling area: Yes
RAL number (similar): 9010
Transparent: No
Lockable: No
Ejector mechanism: No
Insulated installation: Yes
With function lighting: No
With orientation light: No
Overvoltage protection: No
Residual current protection: No
With fine-wire fuse: No
Special power supply: Without
Mounting type: Flush-mounted
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Surface finish: Glossy
Antibacterial treatment: No
With on/off switch: No
With loop-through function: Yes
Twisted central insert: No
Rated current: 16 A
Rated voltage: 250 V
Frequency: 50 Hz
Rated residual current: 0 mA
Suitable for Protection class (IP): IP44
Impact resistance: IK04
Device width: 71 mm
Device height: 12 mm
Device depth: 32 mm
Min. device box depth: 40 mm
Cover: Central plate
For "difficult conditions" (according to VDE): No

Further details:
Labeling field size: 66.7 x 10 mm
With increased touch protection
Supplied with sealing ring
IP 44 only in combination with Allwetter 44® frame
With plug-in connection
2-pole (2 P + E).
