Busch-Jaeger Schuko

Price in EUR including VAT
Delivered between Wed, 13.8. and Fri, 22.8.
Supplied by
Free shipping starting at 30,–

Product details

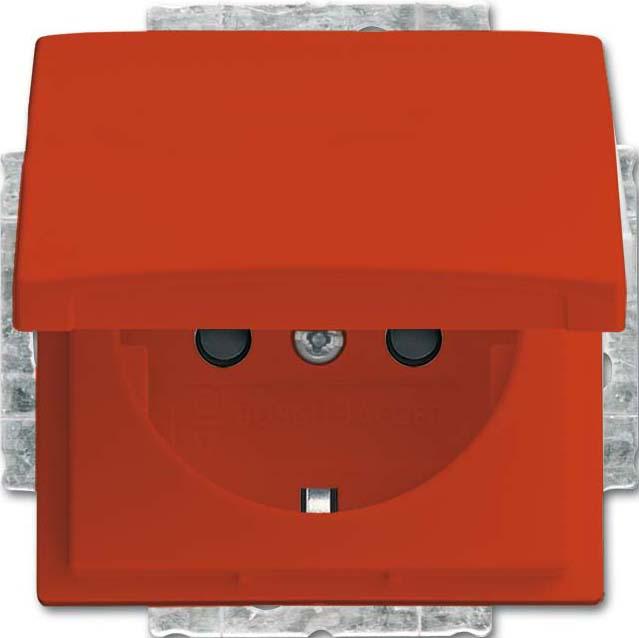

Busch-Jaeger SCHUKO socket outlet insert 20 EUKB-14-914 Manufacturer :Busch-Jaeger Designation :SCHUKO socket outlet insert orange Type :20 EUKB-14-914 Design :SCHUKO earth contact :yes Earth contact round :no Number of active contacts (round) :2 With signal lamp :no With built-in USB power supply :no Number of units :1 Number of modules (with modular design) :1 Number of phases :1 Imprint/labelling :without Connection type :Plug-in terminal With hinged cover :yes With increased touch protection :yes Text field/labelling area :no Colour :orange RAL number (similar) :2004 Metallic colour :no Transparent :no Lockable :no Ejector mechanism :no Insulated installation :yes With function light :no With orientation light :no Overvoltage protection :no Residual current protection :no With microfuse :no Special power supply :Additional safety supply (orange) Mounting type :Flush-mounted Mounting type :Claw/screw mounting Material :Plastic Material grade :Thermoplastic Halogen-free :yes Surface protection :Untreated Finish :Glossy Antibacterial treatment :no With on/off switch :no With loop-through function :yes Twisted central insert :no Rated current :16 A Rated voltage :250 V Frequency :50 Hz Rated residual current :0 mA Suitable for protection class (IP) :IP20 Impact resistance :IK03 Device width :12 mm Device height :32 mm Device depth :71 mm Compatible with Apple HomeKit :no Compatible with Google Assistant :no Min. Device socket depth :40 mm Compatible with Amazon Alexa :no IFTTT support available :no Cover :Central plate For "difficult conditions" (according to VDE) :no Busch-Jaeger SCHUKO socket outlet insert 20 EUKB-14-914: Further details With increased contact protection. With plug connection. 2-pole (2 P + E) Continuous colour coding of central plate and base. Safety+ socket outlet with earthing contact and shutter (increased contact protection according to VDE 0620) , EAN: 4011395191736.

Key specifications

Number of cans
1 x
mounting style
Flush-mounted
Socket type
2-pole
Area of use
Inside
Exact colour description
Orange
Item number
33764752

General information

Manufacturer
Busch-Jaeger
Category
Sockets
Manufacturer no.
2CKA002013A5391
Release date
17.5.2023

Colour

Colour
Orange
Exact colour description
Orange

Material

Material group
Plastic
Material
Plastic

Socket Properties

Socket type
Built-in socket
Series
Standard Due
Socket type
2-pole
Number of cans
1 x
Protection type (IP code)
IP20
Nominal current
16 Ah
Nominal voltage
250 V
Area of use
Inside
mounting style
Flush-mounted
connector type
Plug terminal
Additional properties
Contact protectionHinged coverOvervoltage protection

Smart home features

Smart Home
Not compatible
Requires Smart Home Hub
No

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Stack depth
3.20 cm
Length
7.10 cm
Width
1.20 cm
Height
3.20 cm
