Chauvin Arnoux MiniFLEX MA194-250 (70 mm)

Manufacturer: Chauvin Arnoux
Designation: MiniFLEX MA194-250 (70 mm)
Type: MA194-250
Analog bar display: no
Multiple display: no
With screen backlight: no
Measurement range selection: automatic
Current measurement range/AC: 0.1 - 10,000 A
Current type: AC
True RMS measurement: no
Voltage measurement/AC: no
Voltage measurement/DC: no
Resistance measurement range: no
Temperature measurement: no
Capacitance measurement: no
Frequency measurement: no
Power measurement: no
Leakage current measurement: no
Harmonic measurement: no
Measurement in cable with forward and return conductor: no
Clamp opening: 70 mm
Designed as an adapter for connection to multimeters: yes
Interface: no
Measurement circuit category: CAT IV
Max. voltage measurement circuit category: 600 V
Continuity test: no

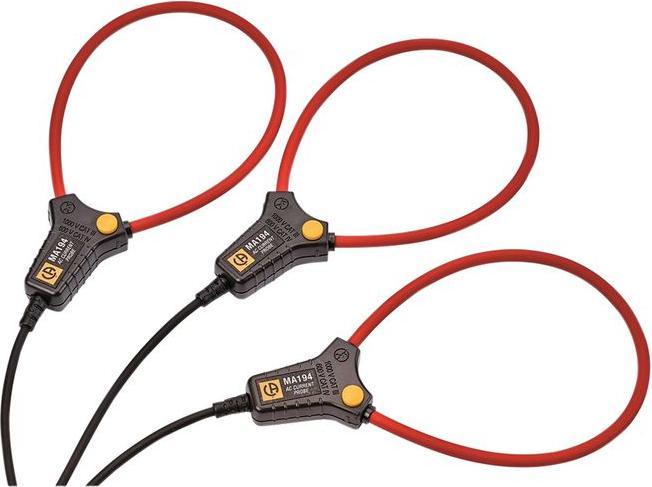

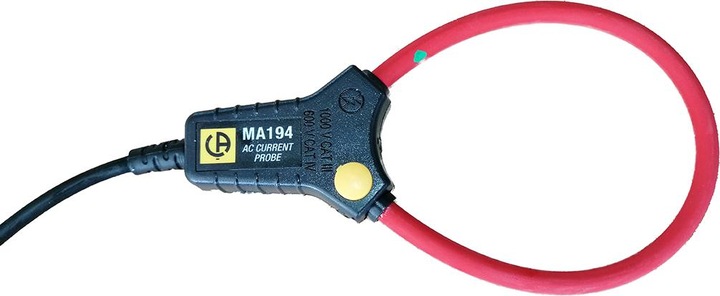

The MiniFLEX MA194 are flexible current transformers designed for connection to Chauvin Arnoux power and energy recorders, power analyzers, and power and network analyzers for measuring alternating currents. They replace the MiniFLEX series MA193 and feature an improved opening and closing mechanism: by simply pressing the yellow button, the red Rogowski coil of the current transformer releases, allowing it to be easily placed around the conductor. When closed, the coil locks in place securely. The MiniFLEX MA194 is available in three different loop lengths: 250 mm (Ø 70 mm), 350 mm (Ø 100 mm), and 1000 mm (Ø 30 mm). With their very thin Rogowski coils, the MiniFLEX series stands out for its exceptional flexibility. Additionally, it boasts a particularly wide measurement range (e.g., from 200 mA to 10 kA AC with PEL 104 or C.A 8336).
