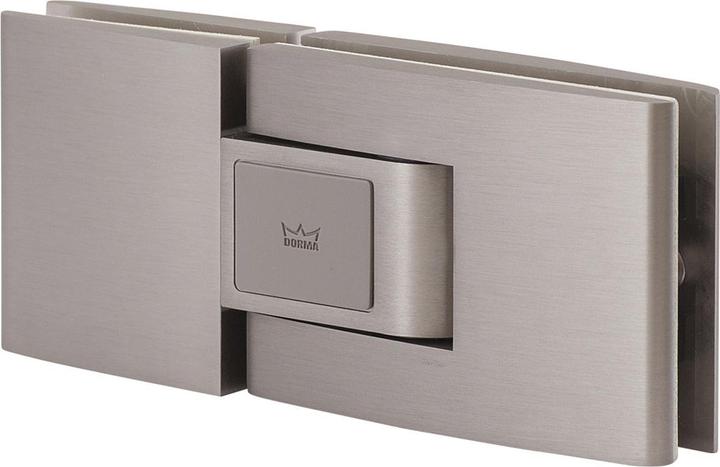

Band with spring-assisted self-closing function without damping. Max. torque 12 Nm (with 2 bands). Application area: single or double-leaf interior doors. Suitable for damp environments (not for sauna applications). Versions available for wall or frame mounting (with surface-mounted or recessed mounting plate) as well as for installation on glass side panels. Max. side panel width 1500 mm. Locking at a 90° opening angle relative to the zero position. Quick and easy zero position adjustment. TÜV testing and monitoring regarding quality and production process with confirmed 500,000 movement cycles. Not suitable for hinged doors.

Locking point: 90°. Glass thickness (mm): 8, 10, and 12. Material: aluminum with stainless steel effect. Mounting type: glass-to-glass. Type: tensioner. Max. leaf height (mm): 2500. Max. load capacity (kg): 65. Max. leaf width (mm): 1000. Leaf width from (mm): 700. Brand: DORMA-Glas. Content (PAA): 1.
