Assa Abloy Effeff security lock DC700 DC700FT0-EDEV1

Manufacturer: Assa Abloy Effeff
Designation: Security lock DC700 GFT, 12VDC, w.RWT, Aluf
Type: DC700FT0-EDEV1
Technology: Other type
Arm: Slide rail
Mounting: Surface-mounted
Opening direction to DIN: Left/right
Adjustable opening damping: Yes
Closing speed adjustable: Yes
End stop adjustable: Yes
Door opening: 0..160 °
Max. external door width: 1400 mm
Door outer width: 1400 mm
Length: 272 mm
Width: 57 mm
Height: 64 mm
Colour: Other
Fire resistance according to EN 1634-1: Suitable for fire doors
Corrosion resistance: Very high
With opening damping: Yes

More details:

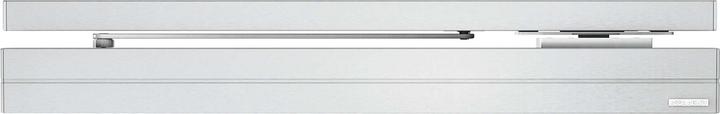

ASSA ABLOY DC700G-FT, door closer with Cam-Motion® technology, extended mounting plate and integrated latch lock, extended slide rail with integrated escape door suitable for retrofitting to fire doors with slide rail door closer and fixing according to drilling pattern DIN EN 1154 supplement 1:2003-11, tested according to DIN EN1154, size 3-6, electric escape door strike 332® tested according to EltVTR, for single-leaf doors, door width 850 - 1200 mm, integrated escape door opener, integrated escape door strike 332® in extended guide rail, integrated latch lock 807 on extended mounting plate, with connection cable 4 m, cable routing possible in flush or surface-mounted, suitable for fire and smoke protection doors, can be used DIN left and DIN right, normal installation on hinge side, closing force continuously adjustable, closing speed, latching action and opening damping continuously adjustable. Opening damping steplessly adjustable from the front, thermodynamic valves for constant speeds, door closer shaft steplessly 14 mm height-adjustable, standard colour: silver EV1.
