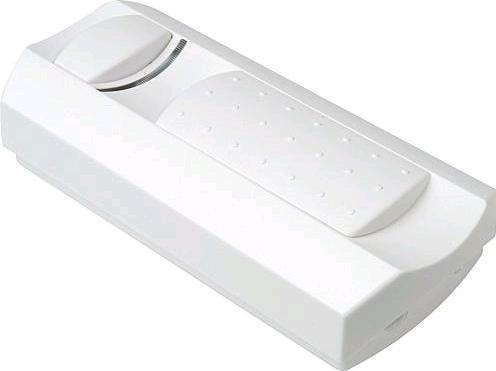

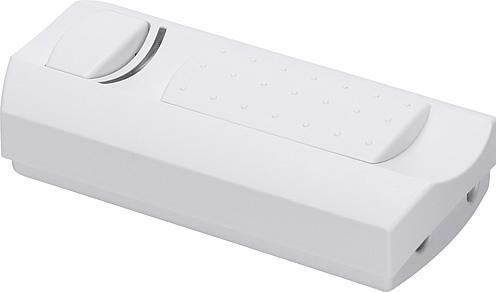

LED Inline Dimmer

This phase-cut dimmer features a slider for brightness adjustment and an on/off switch. It offers flicker-free dimming thanks to adjustable minimum brightness and includes an integrated micro fuse (5x20mm/1A). The cable connection can be made from either side, with two strain reliefs for flat and round cables. It has L, N, and PE connections with screw terminals for cables up to 5mm² and additional strain reliefs for cables up to 1.5mm². This dimmer is suitable for incandescent lamps, high-voltage and low-voltage halogen lamps with conventional transformers (7-110W/VA), as well as dimmable LED lamps (3-35W). The dimensions are 130x59x35mm.

Technical Data

EAN: 4012096003854

Product Group: Inline and Small Switches

Manufacturer: EHMANN

Delivery Item Number: 2660x0700

Color: White

Voltage: 230V.
