Product details

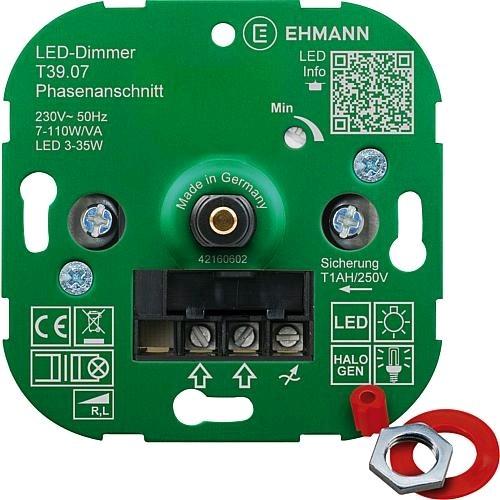

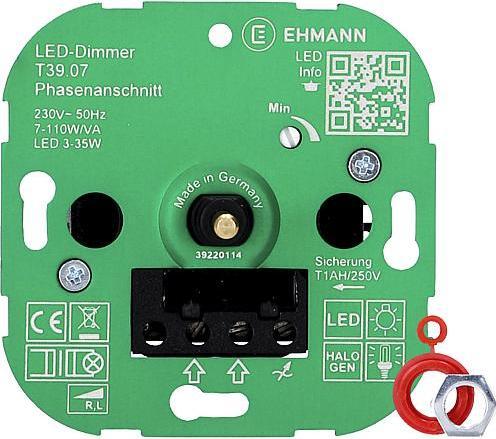

Universal dimmer module for dimmable LED and energy-saving lamps, equipped with a gentle blade, a metal shaft with a diameter of 4mm, and a plug adapter for expansion to a shaft with a diameter of 6mm. It includes a screw connection for 1-2.5mm² wiring and thermal protection, designed for installation in standard flush-mounted device boxes according to DIN 49073. The product offers radio interference suppression and can be integrated into many switch series.
Compatible with dimmable LED and energy-saving lamps (3-35W) as well as incandescent and HV and LV halogen lamps with conventional transformers (7-110W/VA). It features a potentiometer for basic brightness adjustment and a 5x20mm fuse.
Technical specifications:
EAN: 4012096002987
Product group: Other switch series
Manufacturer: EHMANN
Delivery item number: 3900x0700
Design: Push change
Power: 3-110W/VA.
Item number | 33252247 |
Manufacturer | Ehmann |
Category | Light switches + Plug sockets |
Manufacturer no. | 101495 |
Release date | 17.5.2023 |
Colour | Green |
connector type | Screw connection |
CO₂-Emission | |
