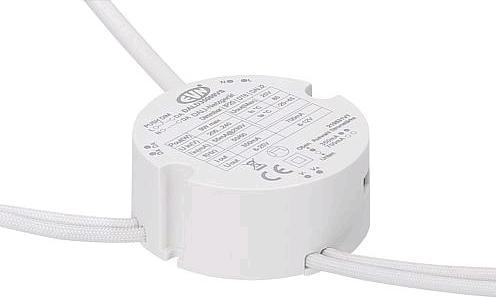

EVN Lighting Technology DALI-LED Controller DALD35009VS

Manufacturer: EVN Lighting Technology
Designation: DALI-LED Controller 350mA m.NG230V
Type: DALD35009VS
Execution: dynamic
Suitable for outdoor use: no
Control type: DALI
Number of color channels: 1
Programmable: yes
Housing: plastic housing
Construction: yes
Installation: yes
DIN rail mounting: no
Output voltage: 0 V
Input voltage: 200-240 V
Max. output current: 0.7 A
Protection class (IP): IP20
Protection class: II

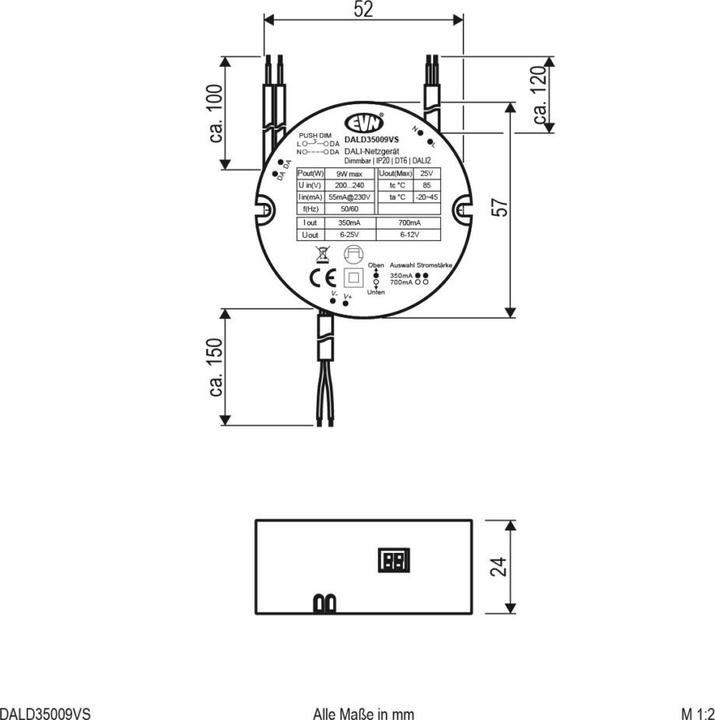

Length: 0 mm
Width: 0 mm
Height: 24 mm
Diameter: 57 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no

Additional details: DALI dimmer receiver with integrated power supply for unicolor lights with automatic DALI address setting. An additional operating device is not required, as the receiver also functions as such. Optionally, the receiver can also be dimmed via Push-L (as 1-channel). Connections: 1x input for DALI bus or Push-L, 1x input for 200-240V/AC, and 1x output for 350mA or 700mA. The output current can be set using dip switches. The connection cables each have a length of 20 cm. Technical data: ta: -20°C - 45°C, tc: 85°C, power: 2.1-9W, power factor: 0.95. Protocol: DT6, DALI2. EAN: 4037293023214.
