Applications:

• For manual flushing of urinals
• For Geberit mounting elements for urinals with front operation
• For Geberit mounting elements for urinals with operation from above
• For installation in Geberit urinal control kits (from year of construction 2009)

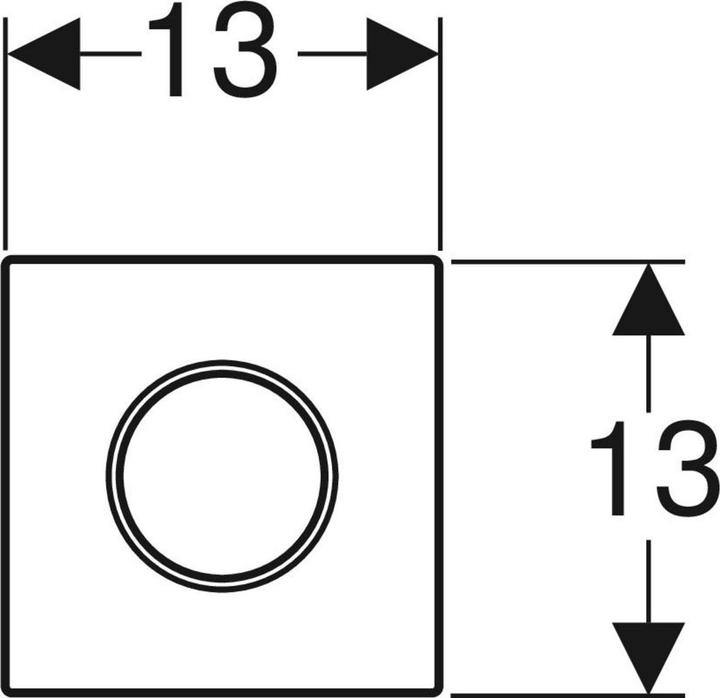

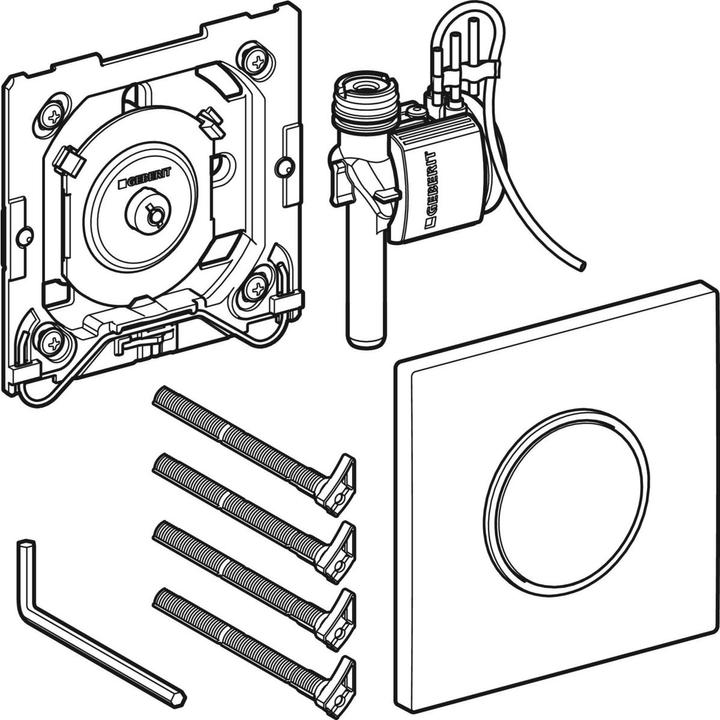

Scope of supply:

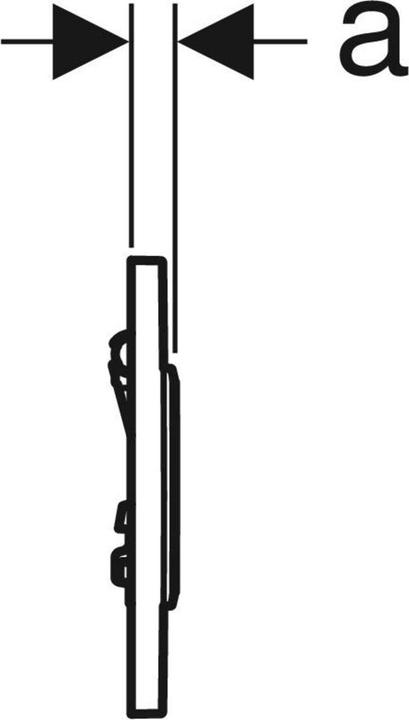

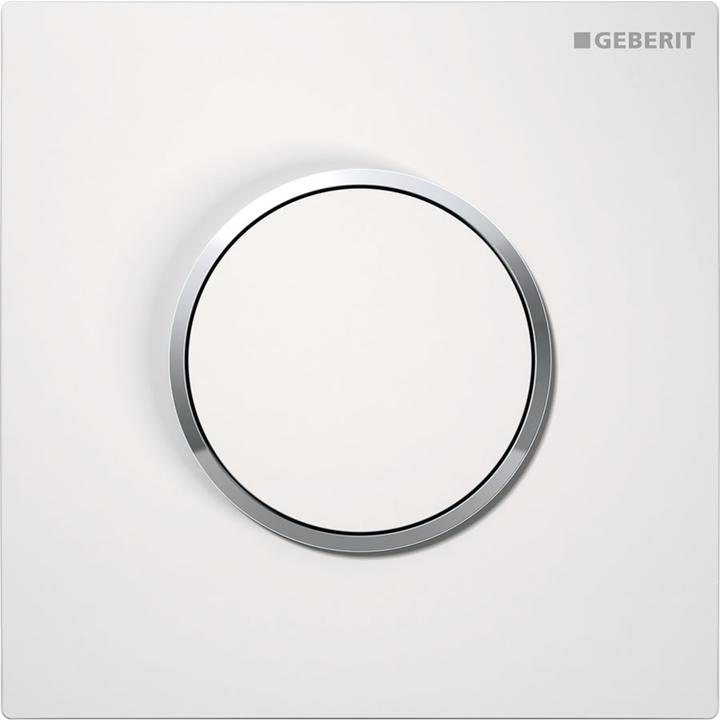

• Operating plate type 10
• Pneumatic flush actuator, pre-mounted on mounting frame
• Pneumatic valve fastening material

Technical Data:

• Flow pressure: 100-800 kPa
• Maximum test pressure water: 1600 kPa
• Maximum test pressure air/inert gas: 300 kPa
• Relative humidity: < 100%
• Maximum water temperature: 30 °C
• Active force: < 12 N
• Flow at 100 kPa without flow limiter: 0.3 l/s
• Flow at 100 kPa with flow limiter: 0.24 l/s
• Calculation flow rate: 0.3 l/s
• Minimum flow pressure for calculated flow rate: 100 kPa

Flush time:

• Setting range: 4/8/12 s

Properties:

• Operating plate with safety latch
• Flush time adjustment with air (pneumatic)
• Low trigger force
• Low lifting motion
• Flush release when releasing the control button
• Flush quantity via throttle screw of the raw kit can be reduced to 0.5 l per flush
• Fitting group II according to DIN 4109.
