Intended use: For manual flush actuation of urinals, for Geberit mounting elements for urinals with front actuation, for Geberit mounting elements for urinals with top actuation, and for installation in shell kits for Geberit urinal controls (from year of manufacture 2009).

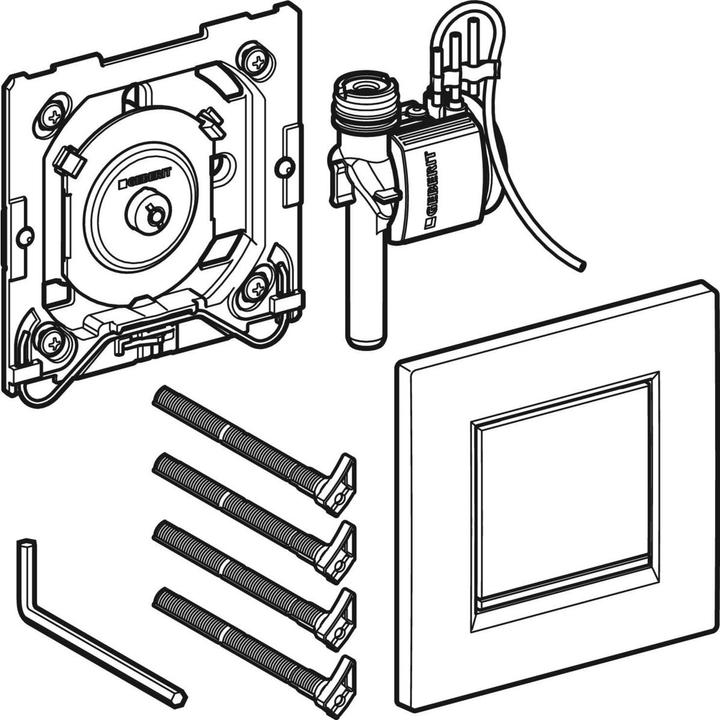

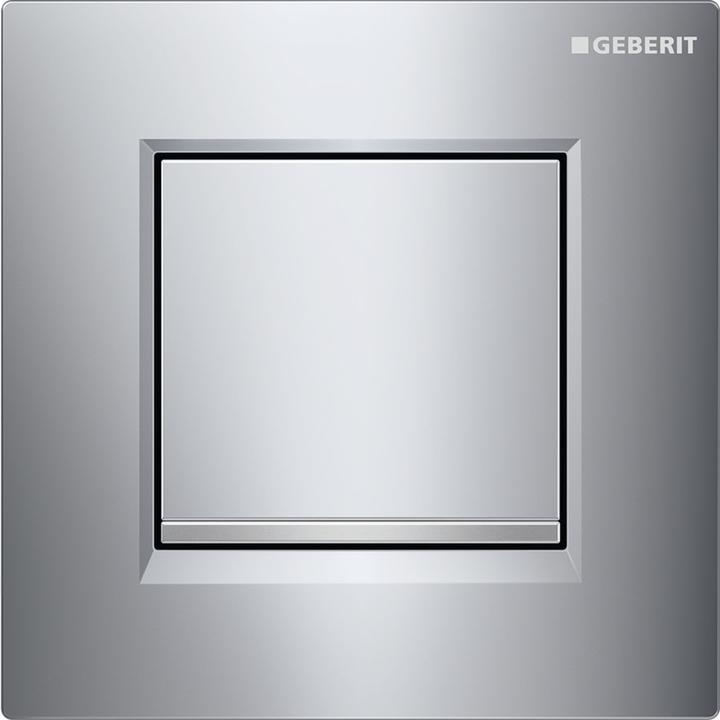

Scope of delivery: Actuator plate type 30, pneumatic flush release (pre-mounted on mounting frame), pneumatic valve, and mounting material.

Technical data:

• Flow pressure: 100-800 kPa
• Maximum test pressure water: 1600 kPa
• Maximum test pressure air/inert gas: 300 kPa
• Relative humidity: < 100
• Maximum water temperature: 30 °C
• Actuating force: < 12 N
• Flow rate at 100 kPa without flow restrictor: 0.3 l/s
• Flow rate at 100 kPa with flow limiter: 0.24 l/s
• Calculation flow rate: 0.3 l/s
• Minimum flow pressure for calculation flow: 100 kPa
• Flushing time setting range: 4/8/12 s

Features:

• Actuator plate with safety latch
• Flushing time setting with air nozzles (pneumatic)
• Low actuation force
• Low stroke movement
• Flush release when actuating button is released
• Flush volume via throttle screw of the body kit down to 0.5 l per flush
• Valve group II according to DIN 4109.
