Damping and retraction in the closing direction start at approximately 25 degrees, and in the opening direction at about 20 degrees. The free-running range allows for a freely selectable door position between 25 and 60 degrees. The door opening angle can be continuously limited between 80 and 140 degrees for wooden doors and 110 degrees for glass doors. The damping performance is adjustable via a valve and features an integrated safety valve against overload. The product is designed for maintenance-free operation in private interior doors.

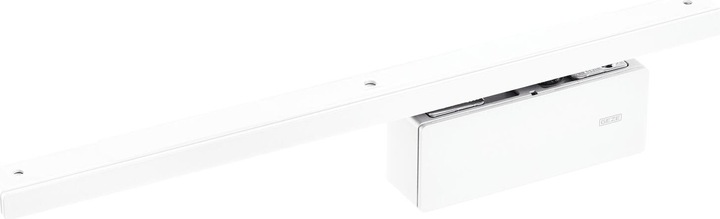

Type: ActiveStop surface-mounted
Leaf weight up to (kg): 45
Suitable for: Wooden doors, rebated and flush
Leaf width up to (mm): 1100
Color: white (RAL 9016)
Brand: Geze
Contents (ST): 1.
