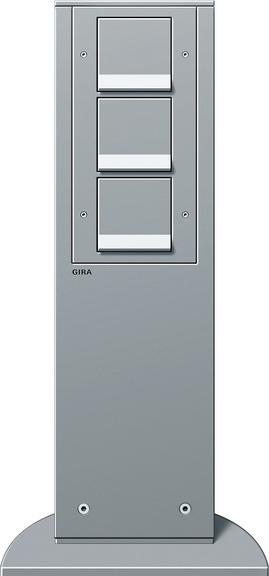

Gira Energy Column alu 134126

Manufacturer: Gira
Description: Energy column alu with devices
Type: 134126
Number of sockets: 3
With lighting: no
Switching function: none
Material: Metal
Material quality: Aluminum
Halogen-free: no
Surface protection: other
Color: Aluminum
Transparent: no
Width: 142 mm
Height: 491 mm
Depth: 75 mm
Suitable for protection class (IP): IP44

Gira Energy Column alu 134126: additional details
Height 491 mm, 3 SCHUKO sockets with shutter, color aluminum. Gira energy columns and light columns with and without light elements for outdoor use. The columns are made of powder-coated aluminum. The base elements for columns up to 1400 mm are also made of powder-coated aluminum. The base elements for columns from 1400 mm are made of powder-coated steel, each in the color anthracite according to GSB standard. The surface is weather and UV resistant, dirt and scratch resistant.

Features: The two upper sockets are rotated 30 degrees. The connection is made via a 5-pole screw terminal for rigid and flexible conductors up to 4 mm².

Notes: For columns up to 1400 mm in height, mounting is done on stone or concrete bases with an optionally available earth sleeve. For columns from 1400 mm in height, mounting is done only with 3 heavy-duty anchors on stone or concrete. Recommendation: Install an RCD before the device. 1-anchor mounting. Increased touch protection (Safety Plus) according to DIN VDE 0620-1.

EAN: 4010337341260.
