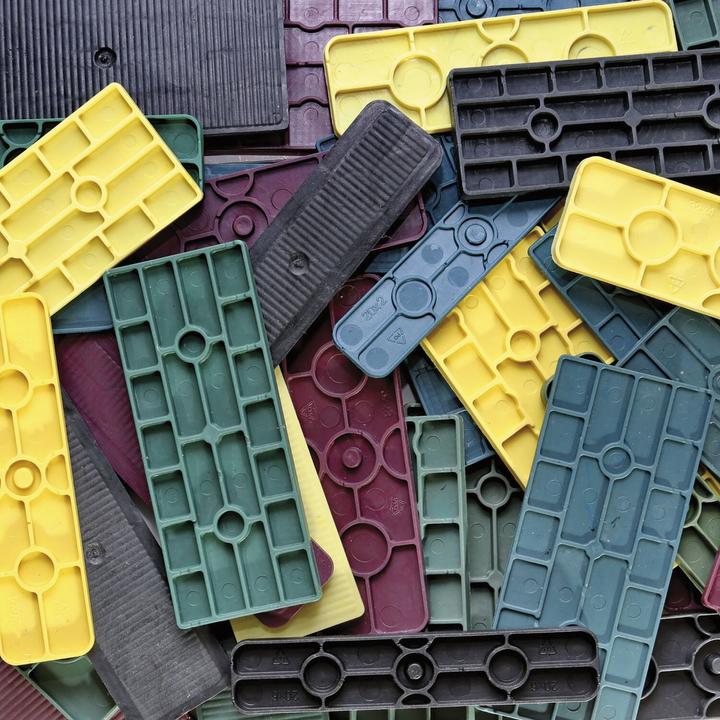

Glazing blocks play an important role in window construction as they are the only connection between the frame and the glass edge, making them crucial for long-lasting functionality. Glazing blocks ensure:

• Load transfer
• Smooth operation of the sash
• Relief of the glass edge
• Prevention of glass-frame contact
• Ensuring a continuous vapor pressure equalization
• Preventing the sliding of the glazing and protecting the edge bond of the insulating glass.

Due to their stable rib system, glazing blocks are extremely load-bearing for a durable and professional blocking of glazing units. The patented "column structure" allows for the resource-efficient and energy-efficient production of spacers and glazing blocks. Additionally, the uniform load distribution through the round columns eliminates "molecular creep" and thus prevents the breaking of the panes.

Product advantages:

• Patented "column structure"
• Compression-resistant and aging-resistant
• Resource-efficient and energy-efficient production
• Uniform load distribution through round columns

Note: In pressure tests conducted by TH Rosenheim, these glazing blocks withstood pressure loads of up to half a ton. To ensure vapor pressure equalization, the glazing blocks are interrupted at the bottom of the column structure.

Color: Yellow
Length (mm): 100
Dimensions (mm): 100 x 20 x 4
Width (mm): 20
Thickness (mm): 4
Type: Glazing block
Material: Plastic
Quantity (ST): 1000.
