Self-locking, electrically connectable, escape latch, Panic C. Comfort latch pre-set for DIN left, convertible to right.

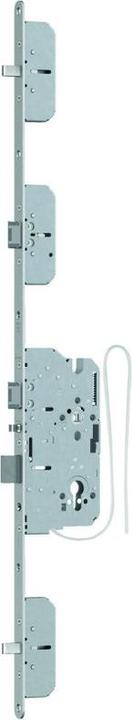

Electrically connectable multi-point locking system with feedback contacts, integrated escape latch, self-locking, latch blocking, control of the release, and Panic C function. Operating mode (rest/current), the panic side is convertible. For secured escape routes in main and secondary entrances in commercial buildings. The panic function with split lock cylinder and separate push button control (external/internal) combined with the integrated escape latch and emergency button offers the ideal solution for access and escape routes. The external push button can be electrically permanently and temporarily (emergency opening) connected/disconnected via the retained cylinder. Access is regulated through an identification system, e.g., RFID, biometrics, building management system, etc., or the cylinder. Exiting via the secured escape route is always possible with the release at the emergency button and the panic function.

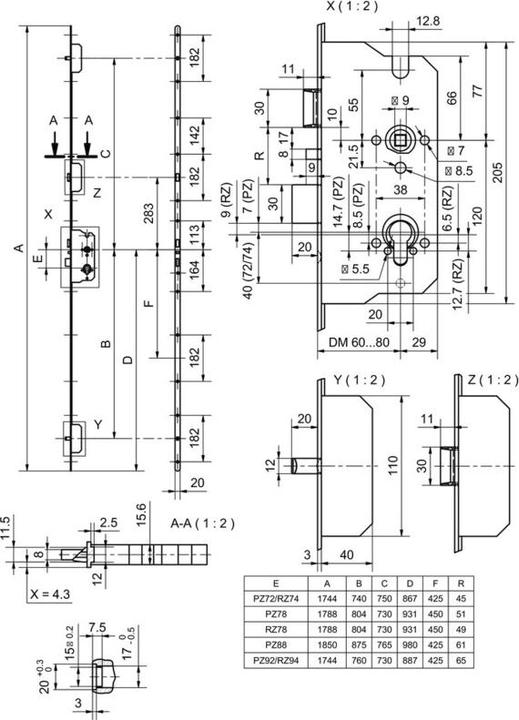

The cylinder screw is not centered on the profile. To determine the cylinder lengths: center of the profile = center of the lock cylinder. No asymmetrical cylinders with L-driver allowed. No reduction sleeves for the lock cylinder/spindle allowed. Only use internal bolt switch contact. Only use the 5920/59105 HESO Panic square pin. The push buttons must be mounted in a rotatable-fixed manner on plates/rosettes. If tamper protection according to EN14846 is required, the set 11105 MS is needed.
