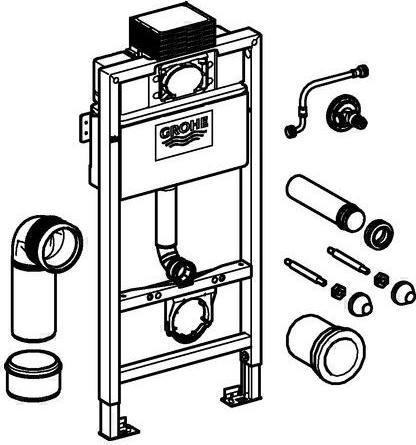

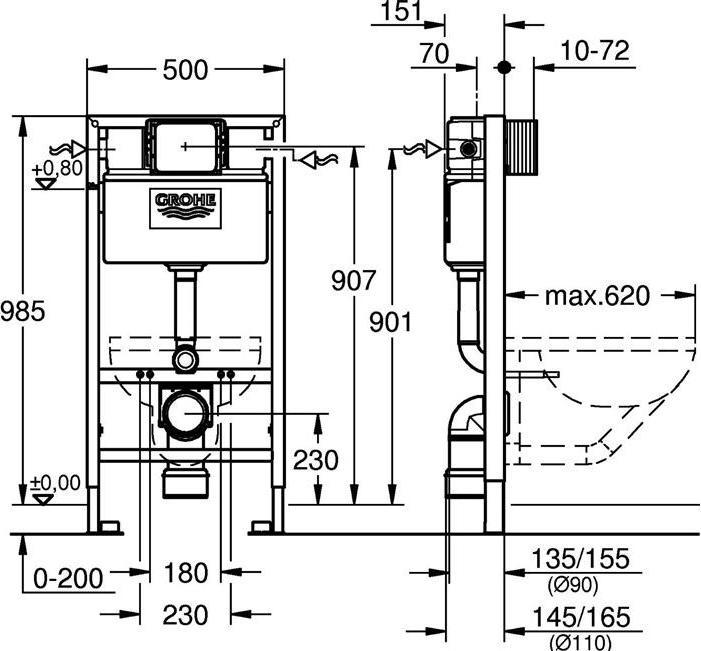

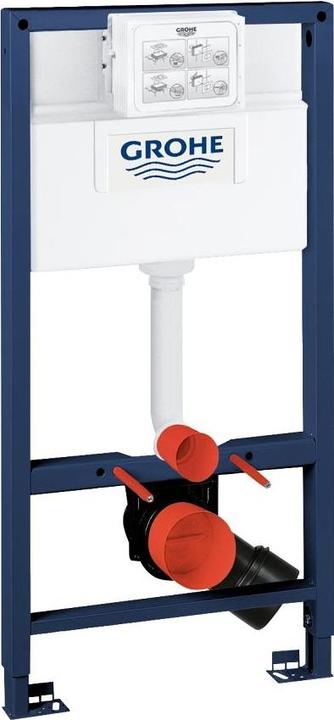

1 m height for pre-wall and stud wall installation. Steel frame completely pre-assembled with quick adjustment and height lock. Includes fixing material, 2 WC retaining bolts, ceramic fixing, and screw spacing of 180/230 mm. Drain bend diameter 90 mm, depth adjustable.

Further technical features:

• Dimension connection tap water: 1/2 inch
• Axial dimension WC fastening: 18 cm and 23 cm
• Connection tap water: external thread
• Number of connections tap water: 1
• Load capacity: >= 400 kg
• Suitable for operation via the flush: No
• Suitable for front operation: Yes
• Suitable for shower toilet: No
• Suitable for electrical operation: No
• Suitable for remote control: Yes
• Suitable for manual control: Yes
• Suitable for infrared control: Yes
• Suitable for installation wall (system wall): Yes
• Suitable for lightweight wall (drywall): Yes
• Suitable for solid wall (wet construction): No
• Suitable for pneumatic operation: Yes
• Suitable for flush flow throttling: No
• Suitable for WC with reduced support: No
• Cistern material: plastic
• Minimum shelf height: 0 mm
• With drainage bend: Yes
• With fixing material for WC: Yes
• With corner valve: Yes
• With inlet and drainage set: Yes
• With bracket suitable for floor installation: Yes
• With bracket suitable for high wall: Yes
• With bracket suitable for low wall: Yes
• With condensation insulation: Yes
• With contact noise insulation set: No
• Programmable with remote control: Yes
• Quality class cistern: polyethylene (PE)
• Frame suitable for WC with jump > 60 cm: No
• Outside pipe diameter tap water: 0 mm
• Depth adjustable: Yes
• Toilet height adjustable: No
• Adjustable width: No.
