Grohe WC element RAPID SL cistern 80mm element width 0.62 m
Price in EUR including VAT
Delivered between Fri, 25.7. and Tue, 29.7.
free shipping
Product details

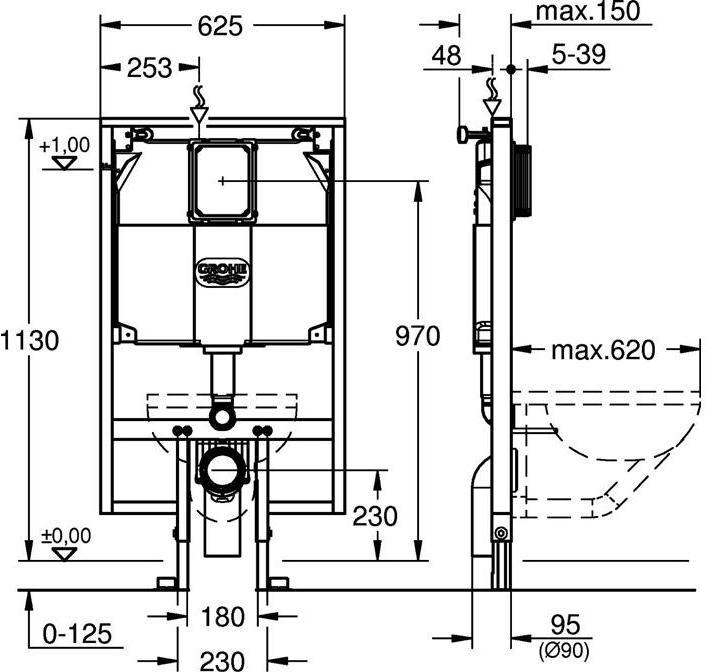

Height: 1.13 m
For pre-wall and stud wall installation
Steel frame completely pre-assembled
Quick adjustment and height lock
Fixing material: 2 WC retaining bolts
Ceramic fixing
Screw spacing: 180/230 mm
PP drain elbow: Ø 90 mm
Depth adjustable
Further technical features:
- Dimension connection tap water: 1/2 inch
- Axle dimension WC fastening: 18 cm and 23 cm
- Connection tap water: external thread
- Number of connections tap water: 1
- Load capacity: >= 400 kg
- Width: 625 mm
- Suitable for operation via the flush: No
- Suitable for front operation: Yes
- Suitable for shower toilet: No
- Suitable for electric operation: Yes
- Suitable for remote control: Yes
- Suitable for manual control: Yes
- Suitable for infrared control: Yes
- Suitable for installation wall (system wall): Yes
- Suitable for lightweight wall (drywall): Yes
- Suitable for solid wall (wet construction): No
- Suitable for pneumatic operation: Yes
- Suitable for flush flow throttling: No
- Suitable for WC with reduced support: No
- Cistern material: plastic
- Min. shelf height: 0 mm
- With shelf height: 0 mm
- With drainage bend: Yes
- With fixing material for WC: Yes
- With corner valve: Yes
- With inlet and drainage set: Yes
- With bracket suitable for floor installation: Yes
- With bracket suitable for high wall: Yes
- With bracket suitable for low wall: Yes
- With condensation insulation: Yes
- With contact noise insulation set: No
- Programmable with remote control: Yes
- Quality class cistern: Polypropylene (PP)
- Frame suitable for WC with crack > 60 c: No
- Outside pipe diameter tap water: 0 mm
- Flush volume: 6 l
- Depth adjustable: Yes
- Toilet height adjustable: No
- Adjustable width: No.
flush volume | 6 l |
Cistern type | WC mounting element |
Item number | 22417727 |
Manufacturer | Grohe |
Category | Toilet tanks |
Manufacturer no. | 38994000 |
Release date | 16.9.2022 |
Material group | Metal |
Material | Steel frame completely pre-assembled |
Cistern type | WC mounting element |
mounting style | Wall hanging |
Water connection Inlet | Bottom right |
flush volume | 6 l |
CO₂-Emission | |
Climate contribution |

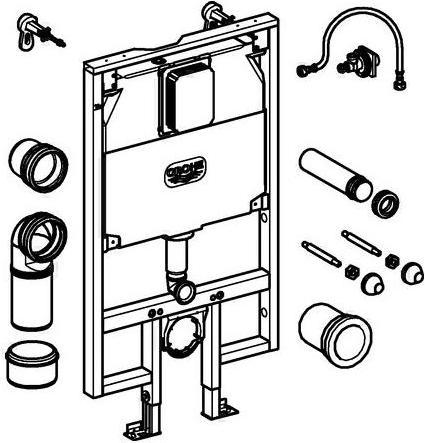

Scope of delivery | 1x 1/2" water connection with tool-free hose fitting, 1x ceramic fixing, 1x drainage elbow, 1x fixing material for the WC, 1x flow sheet, 1x Grohe Rapid SL WC element, 1x inspection chamber 40 949 000 for small cover plates, 1x screw spacing 180/230 mm, 1x tool-free inspection chamber with shell protection, 1x wall bracket 38 558 00M for pre-wall installation, 1x water connection from above or behind, 1x WC retaining bolt |
Width | 625 mm |
Height | 1130 mm |
Length | 114 cm |
Width | 64 cm |
Height | 16 cm |
Weight | 16 kg |
