For wooden fronts and wooden frame fronts. Maximum flap weight including handle: 8 kg. The retractable flap is easy to fit and disappears almost completely into the cabinet when opened.

Scope of delivery:

• 2 guide profiles
• 2 adjustment adapters
• 2 end pieces
• 2 hinges
• 4 pins
• 2 threaded screws

Corpus inside height up to (mm): 406
Height adjustment (mm): +/- 1.25
Material: Plastic
Product type: Swivel-in fitting
Maximum load (kg): 8
Corpus inside height from (mm): 151
Factory number: 45026
Type: Lift Up
Surface: Grey
Flap height from (mm): 145
Flap height to (mm): 400
Flap width to (mm): 1200

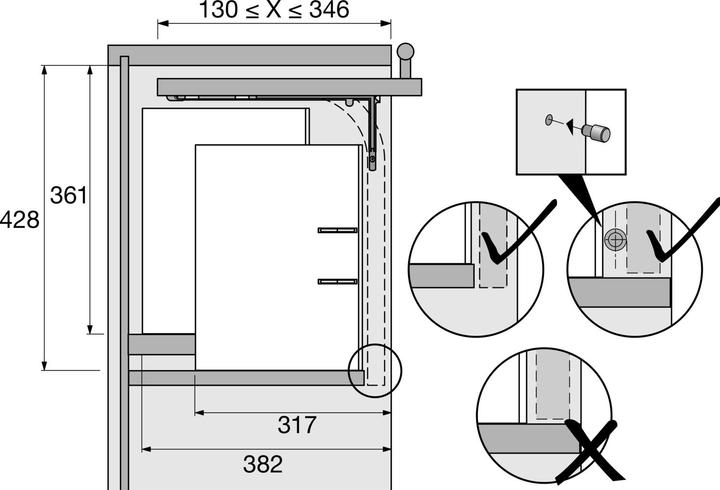

Insertion dimension (mm): 130 - 346
Front thickness (mm): 18/19
Brand: Hettich
Content information (GT): 1.
