Product details

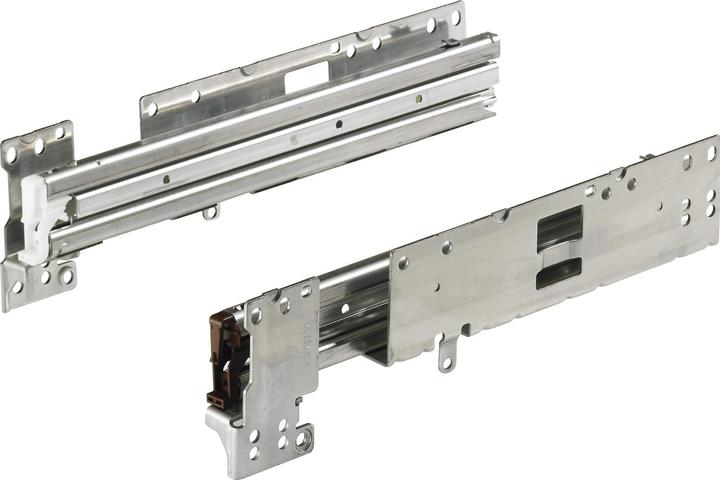

With differential roller. Extension approx. 33 mm. Load capacity of 40 kg according to EN 15338, Level 2. Galvanized steel. Minimum panel height for hole row 32 mm: Max. panel height 5 HE (320 mm). Min. panel height 2 HE (128 mm) for wide wall push and hanging registration frames. Min. panel height 2.5 HE (160 mm) for SysTech frame. Notes: Locking rods Stop Control and Stop Control Plus must be ordered separately. Not designed for parallel systems and push to open.
Extension type | Over-extension |
Max. load | 40 kg |
Items per sales unit | 1 Piece |
Exact colour description | Galvanized |
Material | Steel |
Item number | 42730253 |
Manufacturer | Hettich |
Category | Drawer runners |
Manufacturer no. | 9 209 632 |
Release date | 5.2.2024 |
Colour | Silver |
Exact colour description | Galvanized |
Material group | Metal |
Material | Steel |
Surface finish | Galvanized |
Extension type | Over-extension |
Max. load | 40 kg |
Extract path | 33 mm |
Country of origin | Czech Republic |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
