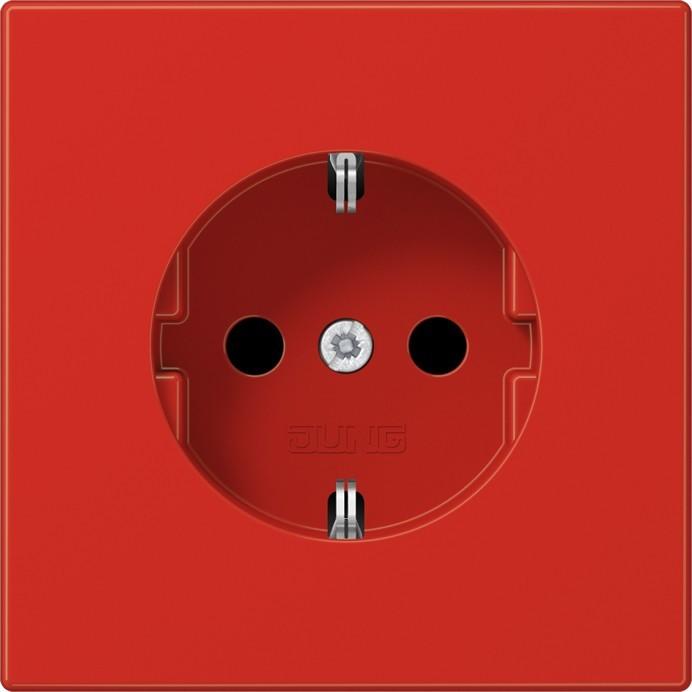

JUNG Socket outlet 1f rt glz LS UP w.BS ZP LS1520BFKIRT
Product details

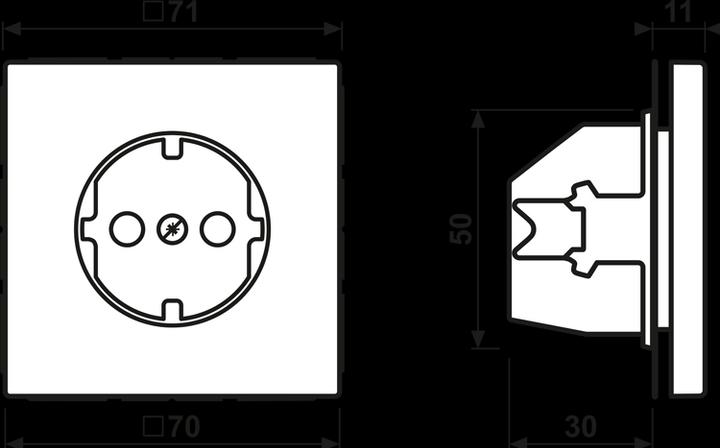

The JUNG built-in socket is a high-quality protective contact® socket designed for indoor use. It features an integrated increased touch protection (Safety Plus) that ensures additional safety. This socket is equipped with spring terminals that allow for easy and secure connections for rigid and untreated flexible conductors up to 2.5 mm². The connection terminals comply with the strict requirements of DIN VDE 0620, enhancing the reliability and safety of the installation. The socket is made of robust thermoplastic and has compact dimensions of 70 x 70 mm, making it ideal for flush mounting. The red color (RAL 3003) not only provides a striking appearance but also allows for easy identification in various installations. This socket is a practical solution for anyone who values safety and functionality.
- Integrated increased touch protection (Safety Plus)
- Spring terminals for rigid and untreated flexible conductors up to 2.5 mm²
- Connection terminals according to DIN VDE 0620
- Robust housing made of thermoplastic.
Number of cans | 1 x |
mounting style | Flush-mounted |
Area of use | Inside |
Exact colour description | Red RAL number: 3003 |
Item number | 32527772 |
Colour | Red |
Exact colour description | Red RAL number: 3003 |
Material group | Plastic |
Material | Thermoplastic resin |
Socket type | Built-in socket |
Number of cans | 1 x |
Protection type (IP code) | IP20 |
Nominal current | 16 Ah |
Nominal voltage | 250 V |
Area of use | Inside |
mounting style | Flush-mounted |
connector type | Plug terminal |
Additional properties | Contact protection |
Smart Home | Not compatible |
Requires Smart Home Hub | No |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Length | 3 cm |
Width | 7 cm |
Height | 7 cm |
