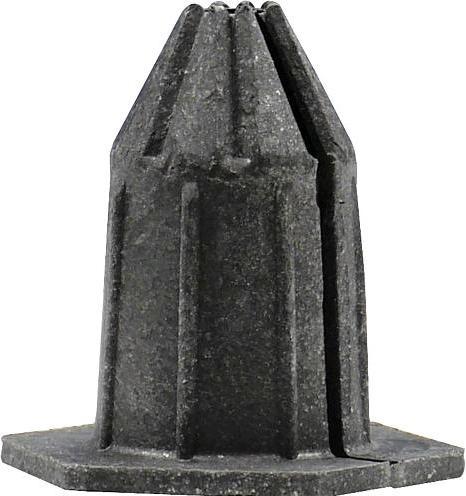

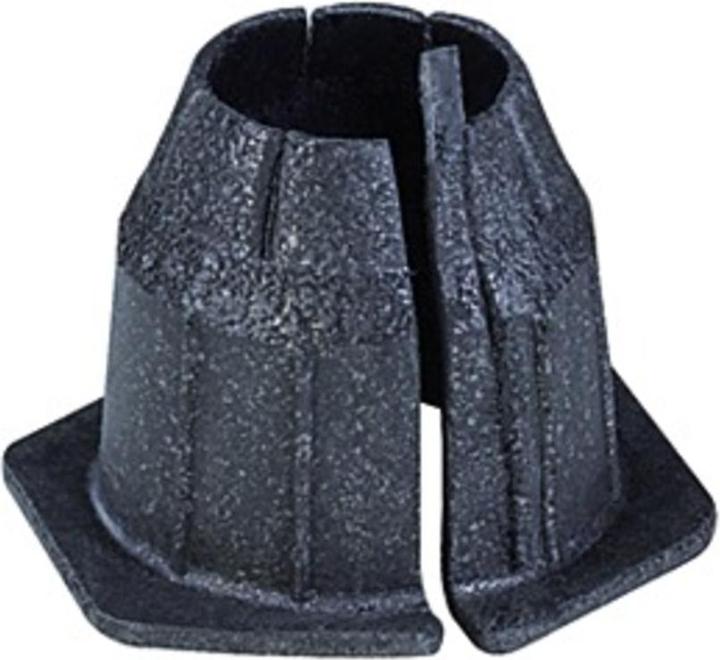

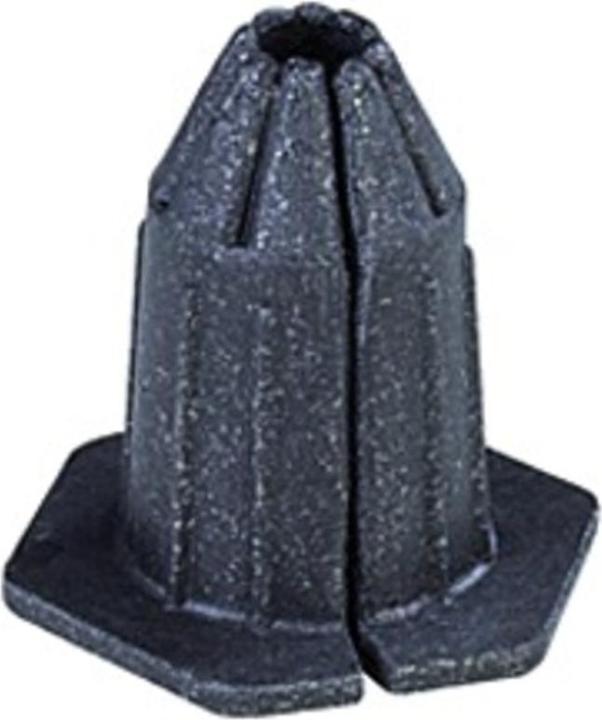

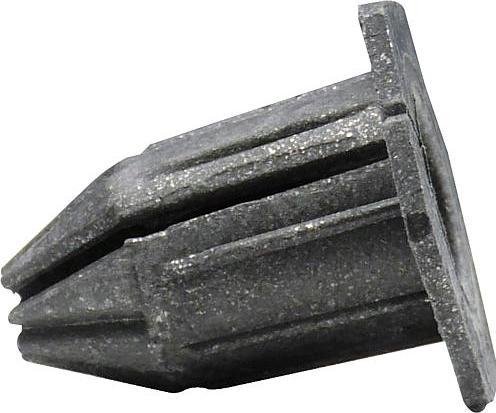

Kaiser Cable Seal System 9459-01

Manufacturer: Kaiser
Designation: Cable Seal System LS 90
Type: 9459-01
Execution: Prefabricated seal
Shape: Round

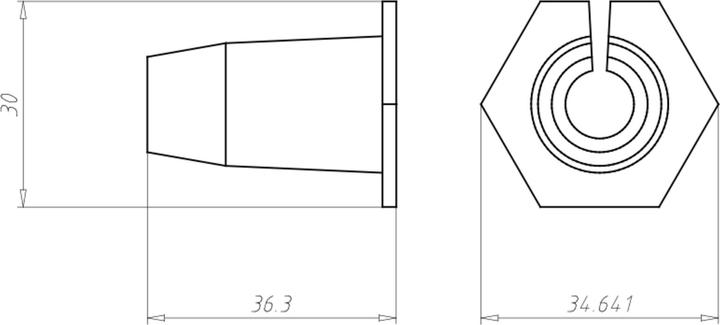

External height: 36.4 mm
External diameter: 20 mm
Internal diameter: 16 mm
Plate thickness/Product length: 36.3 mm
Minimum wall thickness: 100 mm
Suitable for maximum cable diameter: 21 mm
Accessories required: No
Suitable for lightweight partition walls (dry construction): Yes
Suitable for solid walls (wet construction): Yes
Suitable for solid ceilings: No
Suitable for flush installation: No
Suitable for ceiling flush installation: No
Suitable for plastic empty conduits: No
Minimum distances within the fire seal necessary: No
Fire seal can be covered 100%: Yes
Weather resistant: No
Fire resistance class according to DIN 4102-9: S90
Maximum fire resistance class according to DIN EN 13501-2: EI90

Kaiser Cable Seal System 9459-01: Additional details
Cable seal system LS 90 (9459-01). Cable and pipe seal systems for fire protection compliant sealing of penetrations and entries in fire protection walls. The certified seals are quick and easy to install and can even be applied retroactively over cables and pipes. They provide the fire resistance class of the wall (EI30-EI90).
Installation type: Fire protection building
Application area: For cable penetrations
EAN: 4013456536234.
