Kaiser Front Part HaloX 100 1281-01

Manufacturer: Kaiser
Designation: Front part HaloX 100 DA 68 for in-situ concrete
Type: 1281-01
Accessory/Spare part type: Front part
Accessory: yes

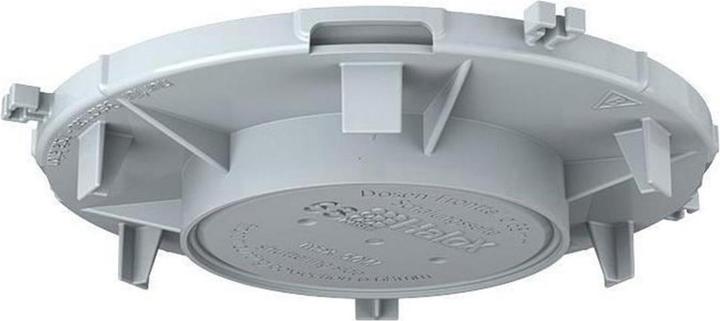

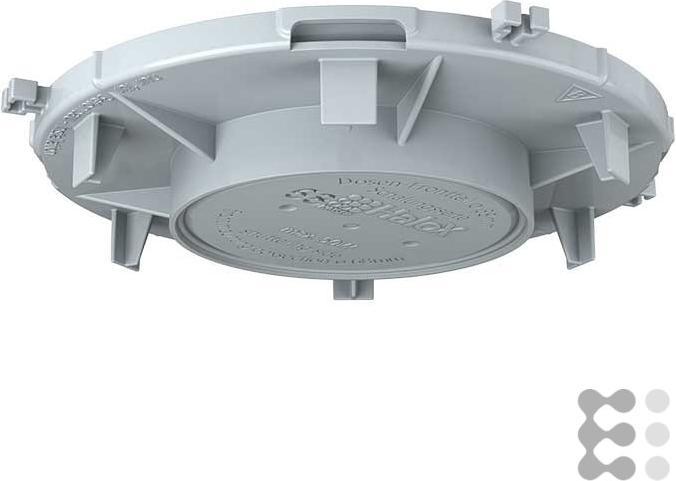

The HaloX® 100 front part (1281-01) is designed for use in in-situ concrete and consists of a stable, modular system. It offers three housing diameters and a variety of round, square, and universal front parts that allow for the integration of lights and speakers with a mounting diameter of up to 250 mm, even in exposed concrete.

The system features a tunnel that provides ample space for operating devices such as LED drivers. Optional extension rings can be used to increase the installation depth. All front parts are moisture-resistant and can be precisely positioned and nailed down before the first reinforcement is laid.

The housing and front parts are securely locked together and can be freely adjusted afterward. The tool-free opening technique with a combination entry M20/M25 allows for easy and quick insertion of pipes. Even in the case of incorrect placement, the entry can be easily resealed.

The secure pipe retention with depth stop prevents subsequent internal shortening of the pipes. After pouring, front parts with a defined mounting diameter can be opened with a targeted hammer strike. Front parts for universal opening sizes can be plastered over or around. The desired installation opening is then created using conventional milling tools, such as the MULTI 4000.

Installation type: In-situ concrete
Mounting diameter for light/speaker: 68 mm
Minimum Ø for light cover: 75 mm
Front part shape: Round ceiling outlet
EAN: 4013456546530.
