Knipex Vde Installation Pliers Filialv.

258 mm
Price in EUR including VAT
Delivered between Sat, 12.7. and Sat, 19.7.
Only 2 pieces in stock at supplier
free shipping

Product details

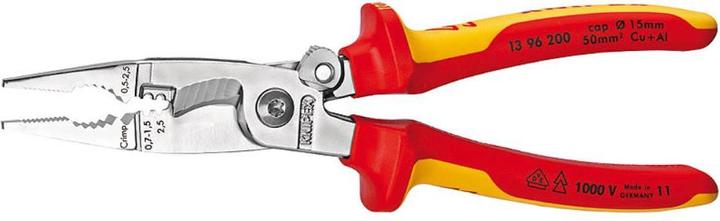

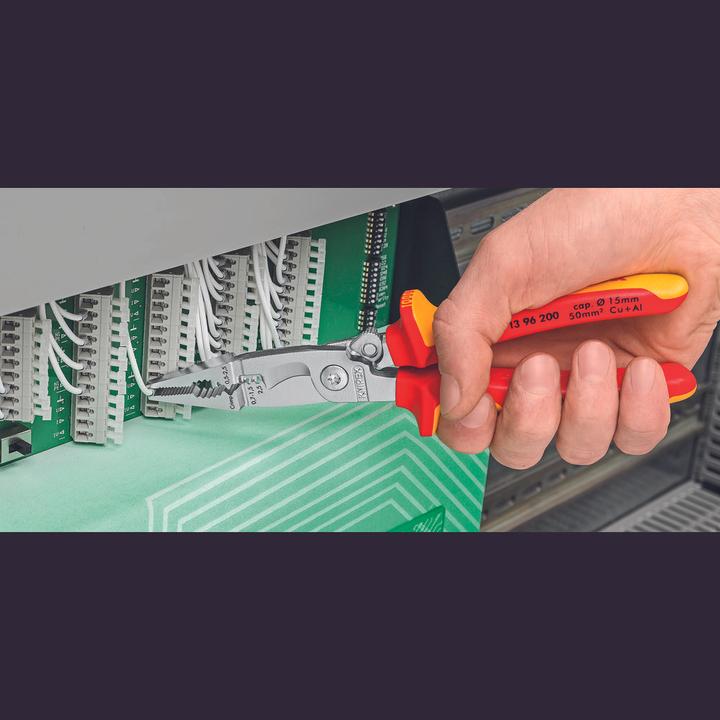

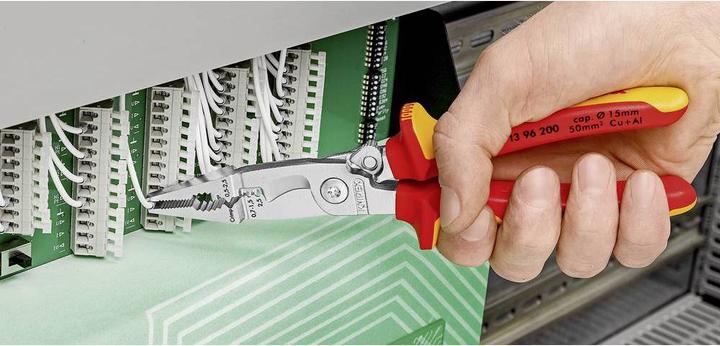

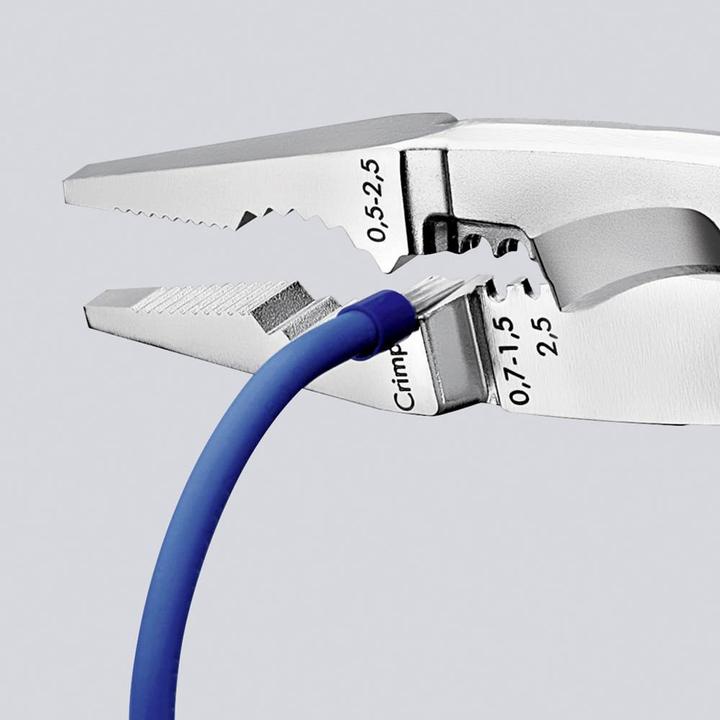

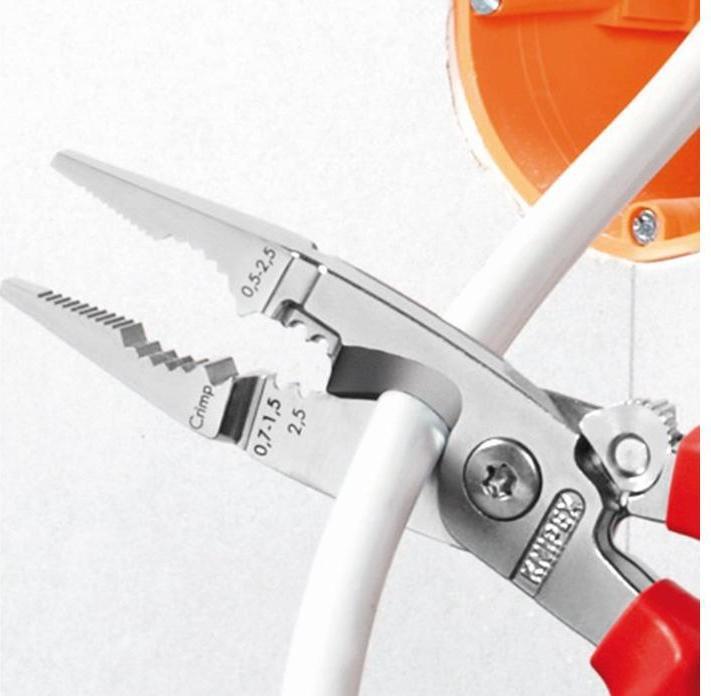

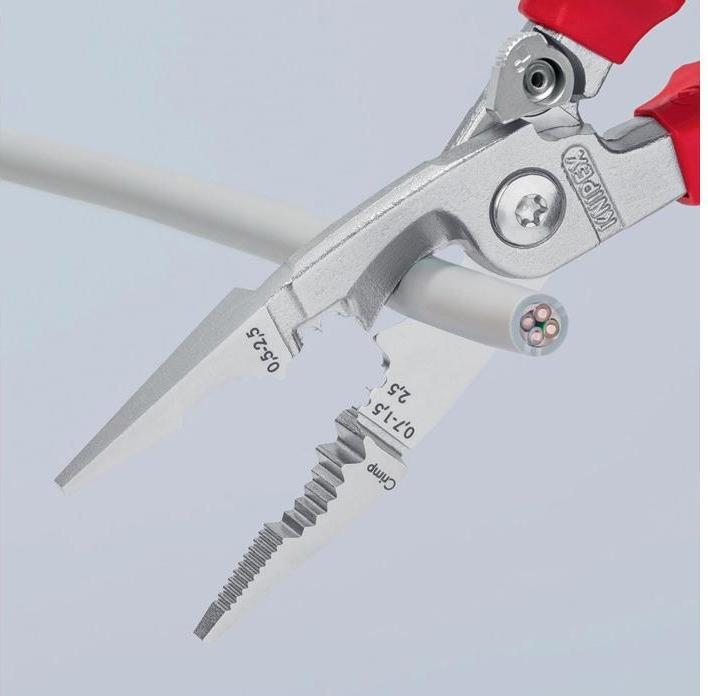

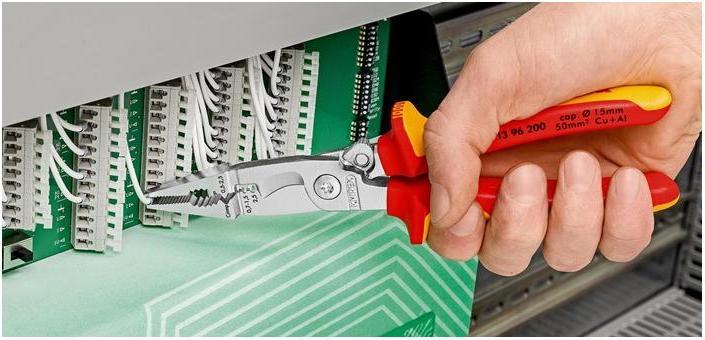

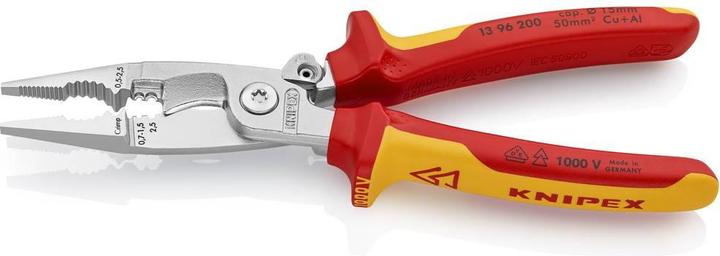

For gripping flat and round materials, bending, deburring, cutting cables, stripping, and crimping ferrules. Six functions in one pliers. In models with an integrated opening spring in the joint, the activated locking latch keeps the blades closed while maintaining the other functions. With the intelligent clamping mechanism, you can grip without opening the pliers. The cutting edge remains closed and protected. Screwed joint: precise, play-free operation of the pliers. Slim design for good accessibility. Smooth gripping surfaces at the tip for damage-free gripping of individual wires. Profiled gripping surfaces and burner hole for gripping flat and round materials. Distinct outer edge on the jaw for working on flush-mounted boxes and deburring passage holes. Stripping holes for conductors 0.75 - 1.5 mm² and 2.5 mm². Crimping nest for ferrules 0.5 - 2.5 mm². Cable scissors with precision cutting edges (inductively hardened) for Cu and Al cables up to 5 x 2.5 mm² / Ø 15 mm. Special tool steel in special quality, forged, multi-stage oil-hardened.

Key specifications

pliers type
Special pliers
Length
258 mm
application purpose
CrimpingFlexureSkinning
Weight
291 g
Handle design
Multi-component cover
Item number
14615219

General information

Category
Pliers
Manufacturer no.
13 96 200 SB
Release date
12.1.2021
Sales rank in Category Pliers
26 of 9715

Colour

Colour
Silver
Exact colour description
Chrome-plated

Material

Material
ChromedInsulated multi-component coverVDE-tested
surface finish
Chromed

Pliers Features

pliers type
Special pliers
application purpose
CrimpingFlexureSkinning
Cutting edge hardness (HRC)
50HRC
Handle design
Multi-component cover
EN standard
does not contain SVHC
DIN standard
Iec 60900
Suitable for
Cable with ptfe-insulation
Jaw mold
Flat
Top shape
8 mm
Crushing range
0.5 - 2.5 mm²

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x
Scope of delivery
1x Knipex Vde installation pliers Filialv.

Product dimensions

Length
258 mm
Width
85 mm
Height
29 mm
Weight
291 g

Package dimensions

Length
24 cm
Width
10 cm
Height
5 cm
Weight
350 g
