Lapp Cable spiral ÖLFLEX® SPIRAL 400 P 2000 mm / 6000 mm 2 x 0.75 mm² Grey 70002625 1 pc.

6 m
Price in EUR including VAT
EUR19,99/1m
Ratings
Delivered between Tue, 1.7. and Thu, 3.7.
Only 2 items in stock at supplier
free shipping

Product details

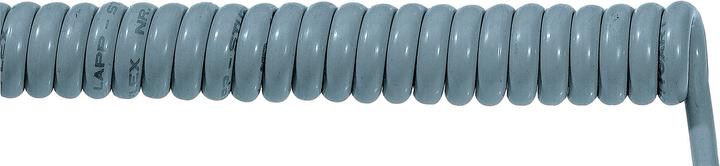

ÖLFLEX® SPIRAL spiral cable PUR, sheath gray, cores number-coded for demanding applications. The notch-tough PUR spiral cable features high restoring forces. The elongation ratio is 3:1, meaning a spiral cable with a closed length of 500 mm can be extended to three times the length of 1500 mm. The stretched ends are each straight cut and 200 mm (end 1) or 600 mm (end 2) long. It is UV resistant.

Technical data:

  • Core ID: Black cores with white number print (VDE 0293)
  • Number of cores (part 1): 2 x
  • Outer diameter: 5.4 mm
  • Color: Gray
  • Shielded: No
  • Halogen-free: No
  • Available part no.: 70002625
  • Content: 1 pc.
  • Insulation material: Polyurethane
  • Cable features: UV-resistant, PUR-jacket, oil-resistant
  • Cable type (categorization): Spiral cable
  • Cable type: ÖLFLEX® SPIRAL 400 P
  • Conductor construction: Fine stranded according to VDE 0295, class 5
  • Rated voltage: 500 V
  • Rated voltage U0: 300 V
  • Standards/Test mark: In accordance with: Core according to VDE 0812/0281, Sheath according to VDE 0250/0282.

Key specifications

cable type
Coiled cables
Cable cross section
0.75 mm²
Voltage
500 V
Cable length
6 m
Exact colour description
Grey
Item number
14165240

General information

Manufacturer
Lapp
Category
Cable conductors
Manufacturer no.
70002625
Release date
10.11.2020
External links
Manufacturer's site (de)

Colour

Colour
Grey
Exact colour description
Grey

Material

Material group
Plastic
Material
Polyurethane (PUR)
Material of the isolation
Polyurethane

Cable properties

cable type
Coiled cables
Cable cross section
0.75 mm²
Number of cores
2 x
Nominal voltage U
300 V
Nominal voltage U0
500 V
Nominal current
0 A
Cable Application
Installation

Power supply

Voltage
500 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Cable length
6 m
Outside diameter
5.40 mm
