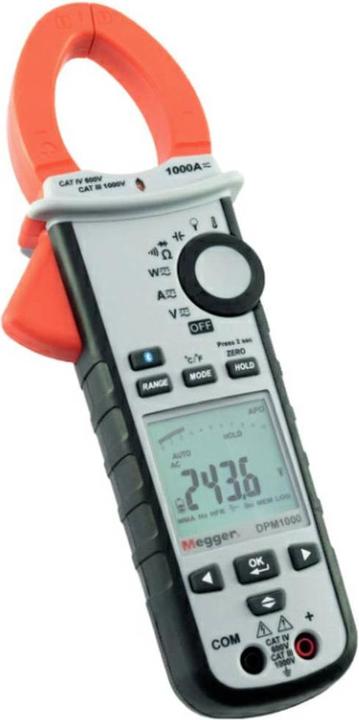

The design meets the requirements of BSEN 61010-1 CAT IV 600 V for supply side applications. A large backlit LCD display clearly shows all measurements, which can be activated at the push of a button or by turning the selection knob. It also automatically shuts off to reduce battery consumption. The DPM1000 can measure DC, AC, pulsed, and mixed currents up to 1000 A simply by clamping the probe around the corresponding conductor, while voltages up to 1000 V AC or DC can be measured with the included test leads. When power measurements are to be taken, both of the above methods are performed simultaneously. All energy-related parameters, including energy consumption, frequency, total harmonic distortion, distortion factor, and capacity, are captured. It features automatic range selection and a phase rotation direction indicator for 3 phases. The DPM1000 measures single-phase and three-phase active power and power factor, the harmonic content of the signal, and can display harmonics up to the 25th harmonic. Temperature measurements up to 1000 °C can be performed using the supplied thermocouple. The DCM1000 is ideally suited for measuring power quality and applications in the development, installation, maintenance, and repair of equipment and devices in power electronics and energy technology. The unit has a built-in flashlight that illuminates during clamp operation and an automatic non-contact voltage detection feature for identifying live wires. The DPM 1000 can be used for data logging in its internal non-volatile memory. You can record up to 9999 measurements/records in memory over a specified period and download the data to create charts and reports. The recording rate can be set from 1 second to 600 seconds.
