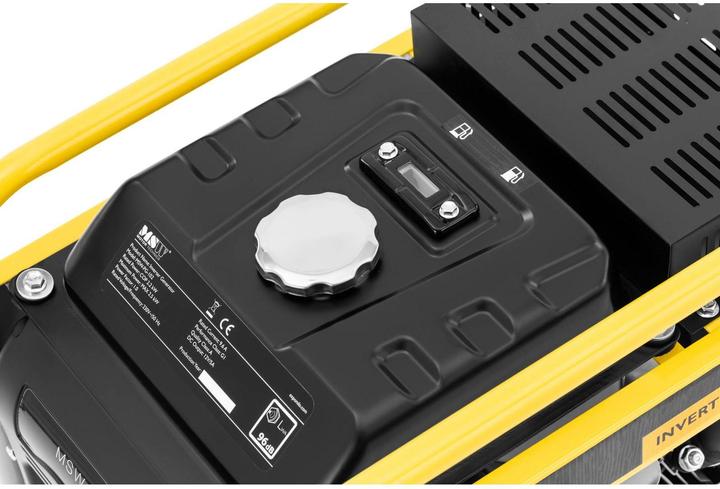

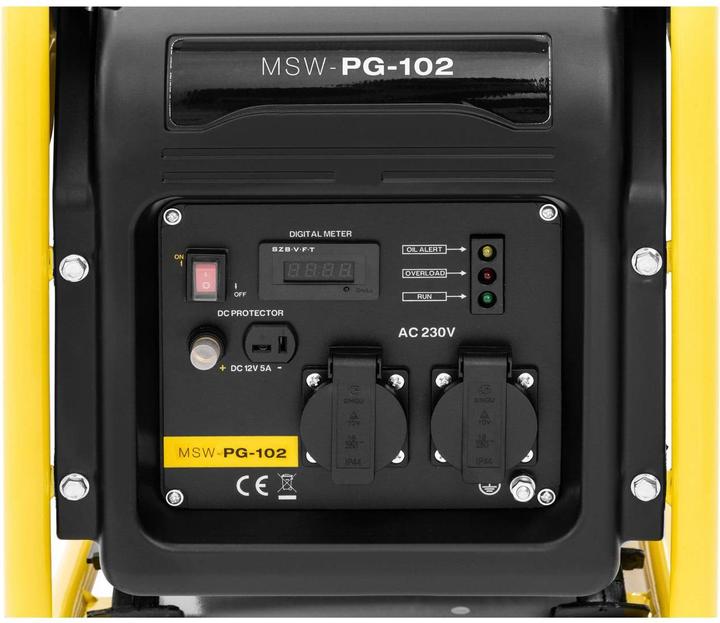

The petrol generator at your side. On a building site, in a workshop, or during shipbuilding, a power source for electrical appliances is not always at hand. With the inverter emergency power generator, MSW offers a reliable power source with 230 V AC that is always close at hand. The compact inverter power generator for petrol is the perfect power source for on-the-go use, thanks to its size and sturdy frame. You operate the 3600 W motor with petrol, and the tank holds 5 litres. The petrol engine is characterised by its high energy efficiency, consuming only 395 g/kWh. You start it manually using a cable pull, and thanks to TCI ignition, it is immediately ready for use. Despite its high performance, the appliance is characterised by a low noise level of just 96 dB.

Technical details:

• Material: aluminium, plastic, steel, copper
• Ignition type: TCI
• Bore x stroke: 68 x 54 mm
• Capacity: 196 cm³
• Power: 3600 W
• Specific fuel consumption: 395 g/kWh
• Cable length: 1.5 m
• Nominal DC power: 60 W
• Nominal DC current: 5 A
• Nominal DC voltage: 230 V
• Power max.: 3200 W
• Nominal output power at 50 Hz: 3.8 kVA
• 12 V output
• Overload protection THD: <5 %
• Model engine: PD168FB / air-cooled single-cylinder 4-stroke OHV
• Voltage: 230 V
• Frequency: 50 Hz
• Engine power: 3600 W
• Sound power: 96 dB
• Power factor: 1
• Nominal power: 2800 W
• Sound pressure level: 95 dB
• Starting system: manual
• Type of engine oil: 15W40
• Socket included: VDE, 2 x 230 V
• Capacity of oil tank: 0.6 l
• Capacity of fuel tank: 5 l
• Working temperature range: 40 °C

Scope of delivery: Inverter power generator petrol MSW-PG-102, voltmeter, spark plug spanner.
