Niedax profile clamp PKS M8/10-40 F

Manufacturer: Niedax
Designation: Profile clamp
Type: PKS M8/10-40 F
Suitable for: C-profile
Design: Clamping piece
With screw accessories: Yes
Material: Steel
Material grade: Other
Surface protection: Hot-dip galvanized

Further details:
Profile clamp including trunnion screw M8 with slotted hexagonal head and clamping plate, designed for clamp fastening to support profiles with parallel flanges or inclined flanges up to a maximum of 14% inclination, and as a supply line to energy consumers. Depending on the application, the fasteners used may vary.

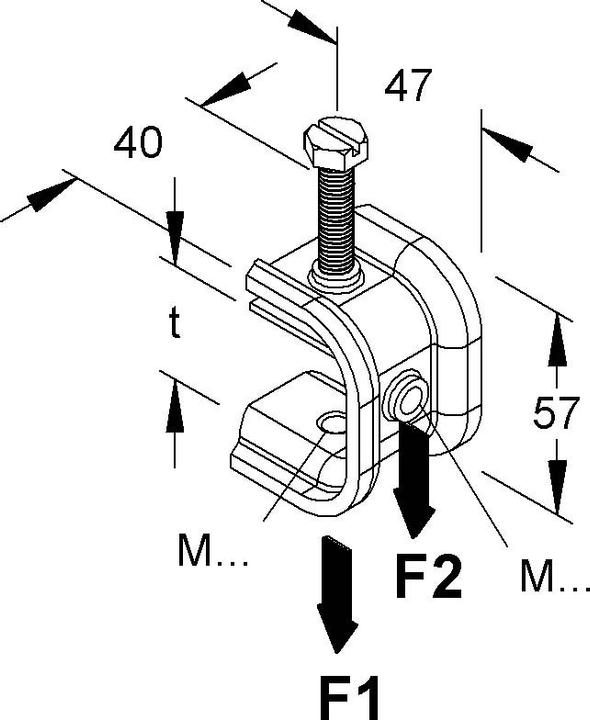

Dimensions (approx.):
H x W x L: 57 x 40 x 47 mm
Threaded connections: M8
Load capacity specification vertical nominal load F1: 1.8 kN
Load capacity specification vertical nominal load F2: 1.6 kN
Flange thickness of the beam t: 6 - 35 mm
Screw tightening torque: 4 Nm
Wrench size: SW 13
Material: Steel, hot-dip galvanized according to DIN EN ISO 1461
EAN: 4013339077571.
